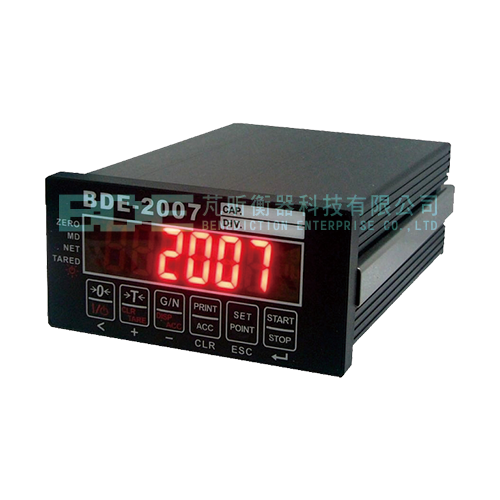

BDE-2007 Modbus Weighing Indicator & Controller
Mini size 96mm×48mm Mounting Hole.
A/D 120 times/sec. Max. Div. 1/30,000.
For One material code Filling machine, Hopper scale, etc.
For Positive Peak Hold.
A/D 120 times/sec. Max. Div. 1/30,000.
For One material code Filling machine, Hopper scale, etc.
For Positive Peak Hold.
- Company NameBENEDICTION ENTERPRISE CO., LTD.
This electronic weighing indicator features a MINI 96mm × 48mm panel size.
DC 12-24V Power Supply.
6 Character 0.62" Ultra Light 7 segment LED Display.
A/D Conversion Rate 120 times/Sec.
PEAK HOLD function.
Internal resolution up to 1/1,000,000.
Displayed resolution: 1/30,000 (Suggest).
Power for eight 350Ω Load Cells.
One set points: SP1, SP2, FF, FINAL, HI, LO, ZERO.
Built-in OP-01 8 Control I/O (Open Collector).
Built-in OP-02A RS-232 interface.
DC 12-24V Power Supply.
6 Character 0.62" Ultra Light 7 segment LED Display.
A/D Conversion Rate 120 times/Sec.
PEAK HOLD function.
Internal resolution up to 1/1,000,000.
Displayed resolution: 1/30,000 (Suggest).
Power for eight 350Ω Load Cells.
One set points: SP1, SP2, FF, FINAL, HI, LO, ZERO.
Built-in OP-01 8 Control I/O (Open Collector).
Built-in OP-02A RS-232 interface.
