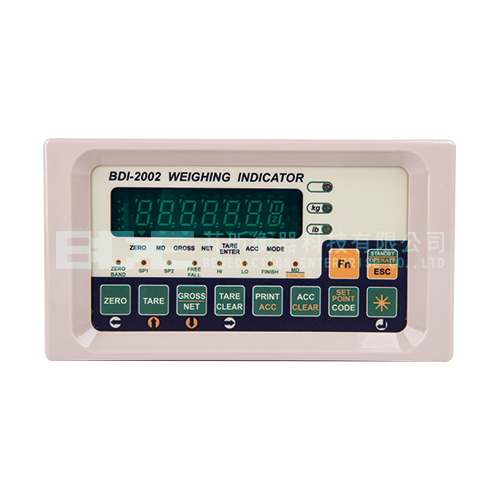

BDI-2002 Weighing Indicator & Controller
A/D 120 times/sec. Max. Div. 1/60,000.
100 Material codes Filling or Batch Mixing.
High Speed Weighing Controller.
Built in Control I/O.
100 Material codes Filling or Batch Mixing.
High Speed Weighing Controller.
Built in Control I/O.
- Company NameBENEDICTION ENTERPRISE CO., LTD.
1/60,000 displayed Resolution, A/D conversion 120 time/sec.
Power for eight 350Ω load cells.
100 codes: Final / SP1 / SP2 / FF / HI / LO.
Automatic Free Fall Compensation.
Input: Zero, Tare, Tare Clear, Start, Stop, Print Accumulation, Print, Clear Count.
Output: Zero band, SP1, SP2, (Final-Finish), HI, LO, Final, Unstable/Error.
Standard: OP-01 Control I/O and 20mA Current Loop for BDI-9910.
Power for eight 350Ω load cells.
100 codes: Final / SP1 / SP2 / FF / HI / LO.
Automatic Free Fall Compensation.
Input: Zero, Tare, Tare Clear, Start, Stop, Print Accumulation, Print, Clear Count.
Output: Zero band, SP1, SP2, (Final-Finish), HI, LO, Final, Unstable/Error.
Standard: OP-01 Control I/O and 20mA Current Loop for BDI-9910.
