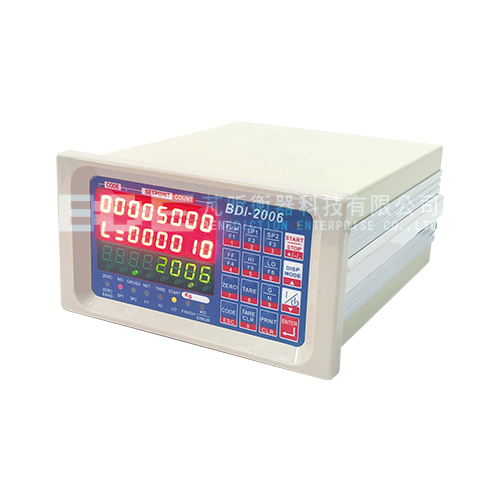

BDI-2006 Weighing Indicator & Controller
3 Column Display: Code/Final/Weight.
A/D 120 times/sec. Max. Div. 1/60,000.
100 Material codes Filling or Batch Mixing.
High Speed Weighing Controller.
Built in Control I/O.
A/D 120 times/sec. Max. Div. 1/60,000.
100 Material codes Filling or Batch Mixing.
High Speed Weighing Controller.
Built in Control I/O.
- Company NameBENEDICTION ENTERPRISE CO., LTD.
1/16,000 displayed resolution (Max 1/60,000 depending on load cell quality & performace). Internal Resolution 1,000,000,A/D Conversion rate 120 times/ Sec.
Watchdog virtually eliminates malfunctions that associated with computerized equipment or software failure.
Full Digital Calibration makes setting ZERO and SPAN Calibration an easy task.
Drines up to 8 parallel connecting load cells.
8k bytes SRAM with Lo-battery backup. Information will not disappear even power failure.
The settings of function and weighing parameters are all stored in the EEPROM,with storage duration over 40 years.
Important values and parameters can have storage backup.
Users can adjust the intensity of digits f ilter to avoid mechanical vibrat ion thatcaused by external environments to achieve high-speed and accuratemeasurement.
Set point codes can store up to 100 sets of : Final, SP1, SP2, Free Fall, HI, LO.
Automatic Free Fall Compensat ion provides closer tolerance and preciseweighing.
8 Set of control Input: ZERO Input, TARE Input, Tare reset, Startbatch,Abort batch, Print Accumulator, Print Input, Clear, ACC. &COUNT.
8 Set of control Output:ZERO Band output, SP1 output, SP2 Output, (Final-FreeFall) output, HI output, LO output, Final Output, MD/Error output.
Standard Serial Output (20mA Current Loop) for remote display.
Optional pr inter inter face can automatically print or output data includes: date,time, set point code, serial number, weight, and unit.
Watchdog virtually eliminates malfunctions that associated with computerized equipment or software failure.
Full Digital Calibration makes setting ZERO and SPAN Calibration an easy task.
Drines up to 8 parallel connecting load cells.
8k bytes SRAM with Lo-battery backup. Information will not disappear even power failure.
The settings of function and weighing parameters are all stored in the EEPROM,with storage duration over 40 years.
Important values and parameters can have storage backup.
Users can adjust the intensity of digits f ilter to avoid mechanical vibrat ion thatcaused by external environments to achieve high-speed and accuratemeasurement.
Set point codes can store up to 100 sets of : Final, SP1, SP2, Free Fall, HI, LO.
Automatic Free Fall Compensat ion provides closer tolerance and preciseweighing.
8 Set of control Input: ZERO Input, TARE Input, Tare reset, Startbatch,Abort batch, Print Accumulator, Print Input, Clear, ACC. &COUNT.
8 Set of control Output:ZERO Band output, SP1 output, SP2 Output, (Final-FreeFall) output, HI output, LO output, Final Output, MD/Error output.
Standard Serial Output (20mA Current Loop) for remote display.
Optional pr inter inter face can automatically print or output data includes: date,time, set point code, serial number, weight, and unit.
