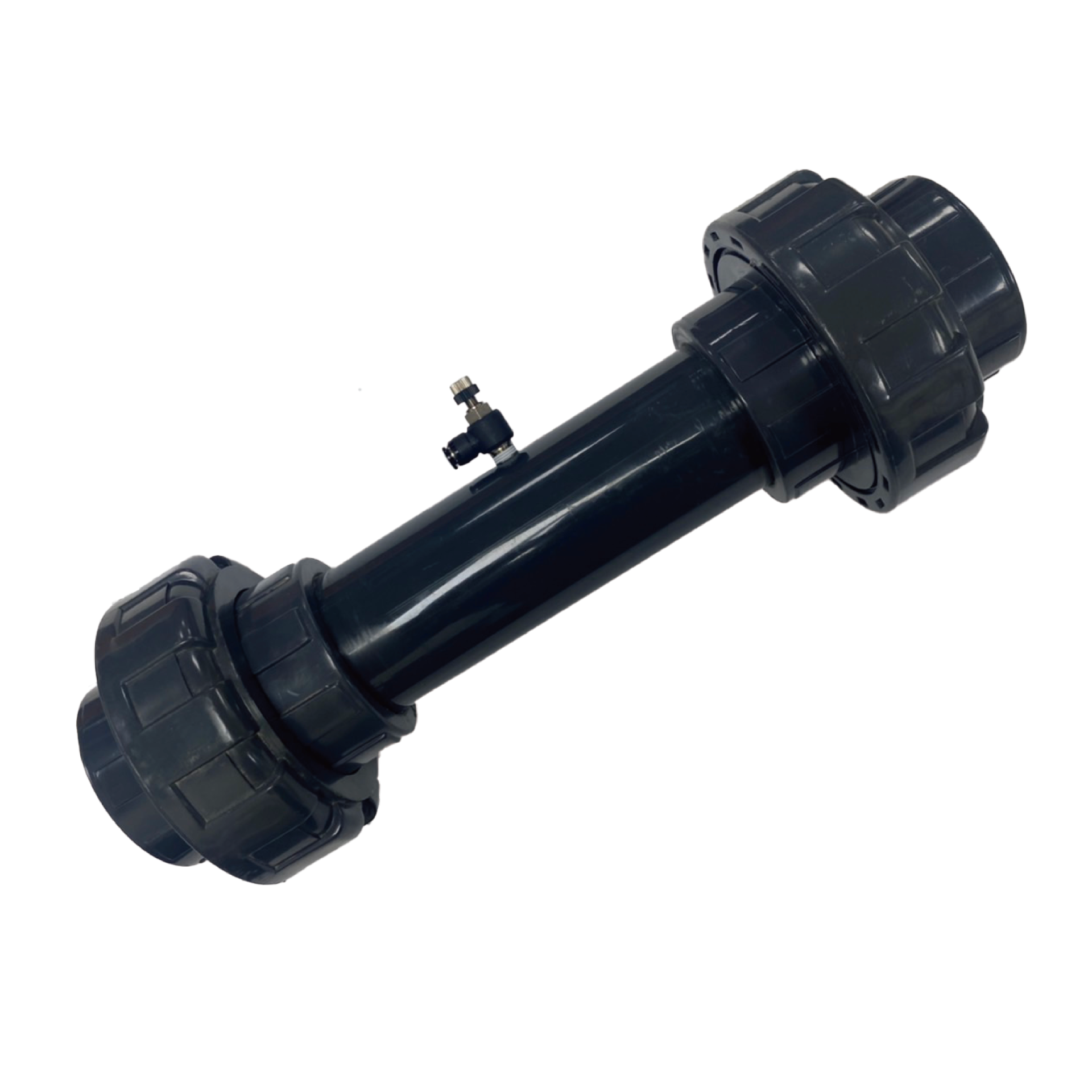

Ultrafine Bubble Generator GB5020P
By using different gases, the system can produce different effects, such as
◎ Oxygen → increases dissolved oxygen levels in water, accelerates plant growth, and allows higher planting and aquaculture density
◎ Hydrogen → promotes faster plant growth
◎ Ozone → provides high-efficiency sterilization, safe detoxification, food preservation, natural bleaching, and rapid deodorization
◎ Oxygen → increases dissolved oxygen levels in water, accelerates plant growth, and allows higher planting and aquaculture density
◎ Hydrogen → promotes faster plant growth
◎ Ozone → provides high-efficiency sterilization, safe detoxification, food preservation, natural bleaching, and rapid deodorization
- Company NameGEON INTERTEC CO., LTD.
This product can be applied to organic farming for plant growth enhancement and pest control, indoor aquaculture tank circulation, fish pond filtration and circulation systems, agricultural irrigation systems, solar-powered aeration floating platforms, cooling tower temperature reduction, swimming pool ozone disinfection systems, and other related applications.

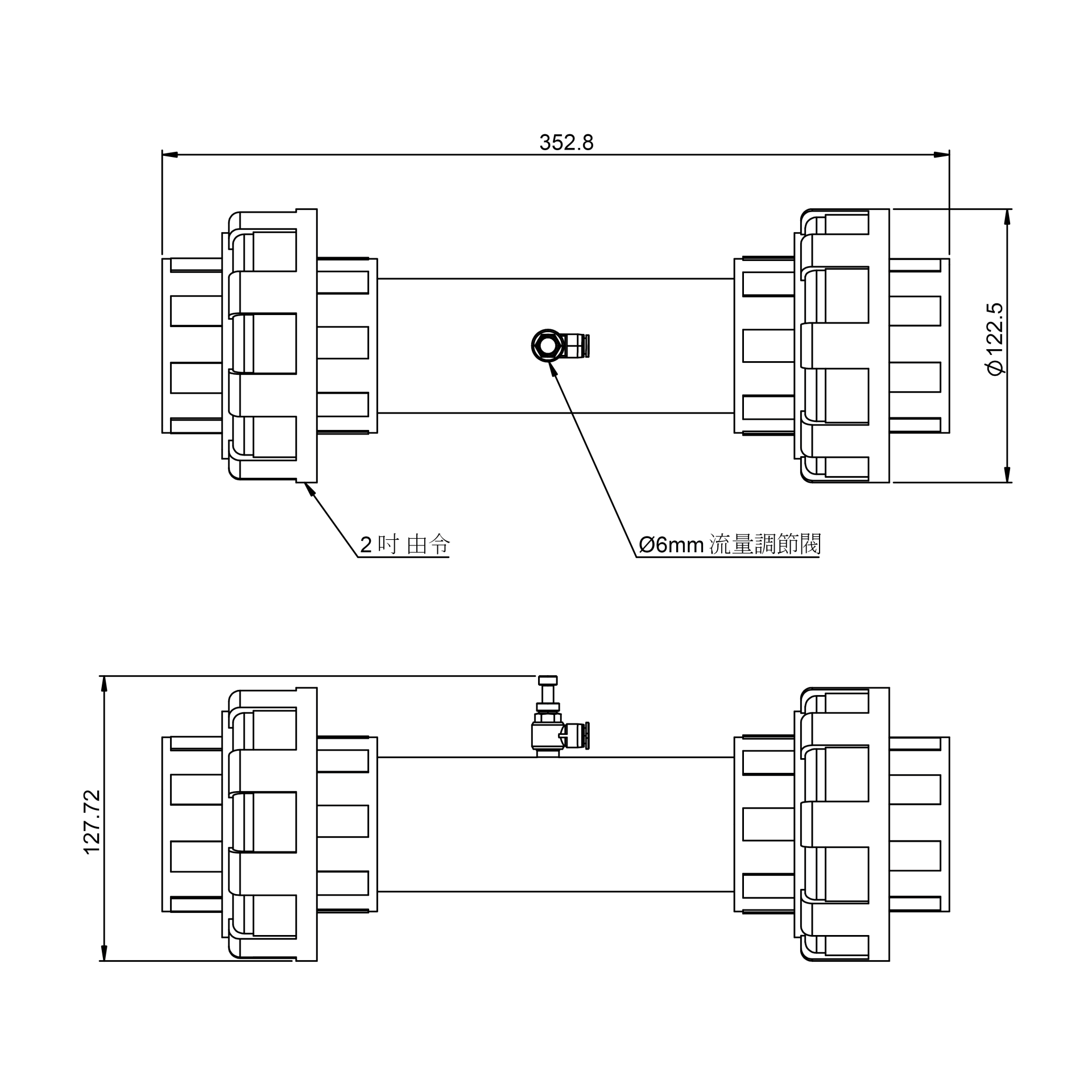

Product Specifications
Gas pressure: 30–700 kPa
Gas flow rate: 0.5–4 L/min
Gas tube connection: Ø6 mm
Weight: 1.4 kg
Piping size: 1.5-inch threaded connection
Pump flow rate: 10,000–18,000 L/hr
Applicable water volume: 3–5 m³
Notes
The above parameters may vary depending on the pump head and on-site piping configuration
Piping can be connected using push-fit union fittings
Product Specifications
Gas pressure: 30–700 kPa
Gas flow rate: 0.5–4 L/min
Gas tube connection: Ø6 mm
Weight: 1.4 kg
Piping size: 1.5-inch threaded connection
Pump flow rate: 10,000–18,000 L/hr
Applicable water volume: 3–5 m³
Notes
The above parameters may vary depending on the pump head and on-site piping configuration
Piping can be connected using push-fit union fittings
