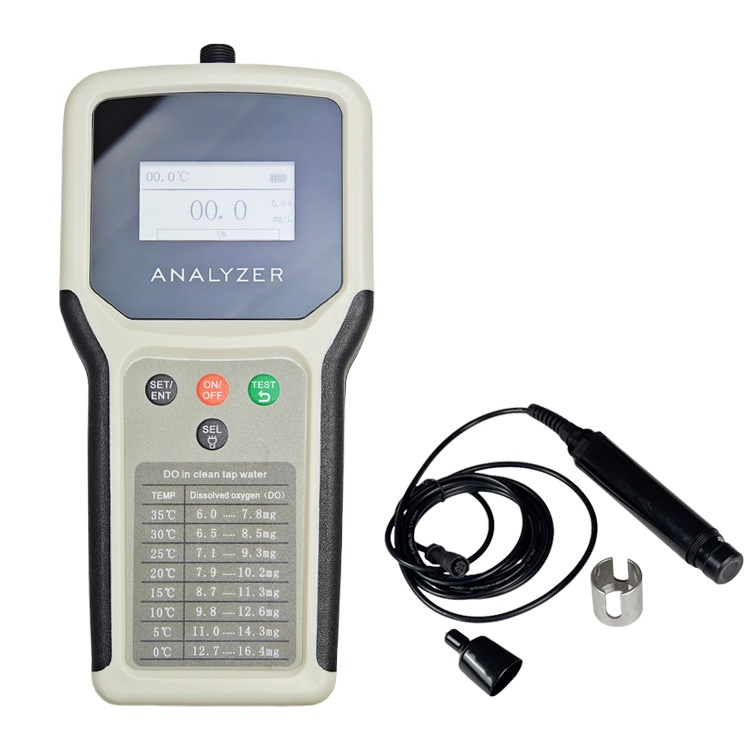

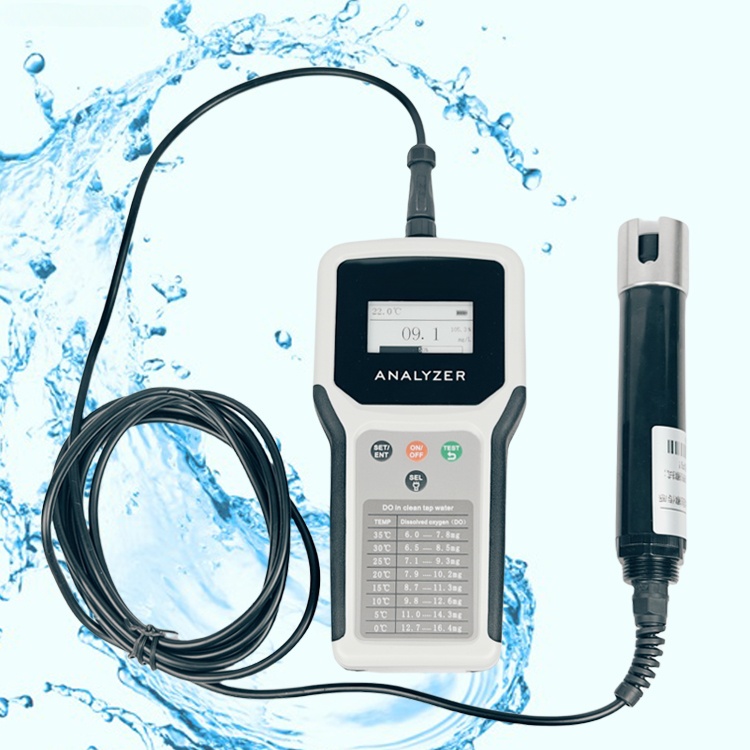

Portable Optical Dissolved Oxygen Meter
This product is an intelligent dissolved oxygen (DO) analyzer distributed by our company.
The dissolved oxygen sensor adopts optical fluorescence technology to measure dissolved oxygen in water. Based on the fluorescence quenching principle, the decay time of the excited red light is inversely proportional to the oxygen concentration, allowing accurate calculation of dissolved oxygen levels.
This instrument is suitable for applications including aquaculture, environmental monitoring, and water quality monitoring in industrial processes.
The dissolved oxygen sensor adopts optical fluorescence technology to measure dissolved oxygen in water. Based on the fluorescence quenching principle, the decay time of the excited red light is inversely proportional to the oxygen concentration, allowing accurate calculation of dissolved oxygen levels.
This instrument is suitable for applications including aquaculture, environmental monitoring, and water quality monitoring in industrial processes.
- Company NameGEON INTERTEC CO., LTD.
Measurement Range
Dissolved Oxygen: 0–20 mg/L or 0–200% saturation
Temperature: 0–50°C
Measurement Accuracy
Dissolved Oxygen:
Model B: ±0.1–0.3 mg/L
Model C: ±0.3 mg/L
Temperature: < ±0.3°C
Resolution
0.01 mg/L
Response Time
Model B: T90 < 120 s
Model C: T90 > 120 s
Power Supply
9–24 VDC (12 VDC recommended)
Output Signal
RS-485 serial communication, Modbus protocol
Operating Temperature
0–40°C
Storage Temperature
-5–60°C
Dimensions
Ø32 mm × 17 mm
Sensor Material
Housing: ABS
Optional: Titanium alloy, etc.
Recommended Applications
Model B:
Suitable for clean water environments, online monitoring, and handheld measurement needs. Offers fast response and high accuracy.
Model C:
Designed for online monitoring in aquaculture environments and suitable for harsh water conditions. The fluorescence membrane features antibacterial properties, scratch resistance, and strong anti-interference performance.
Additional Features

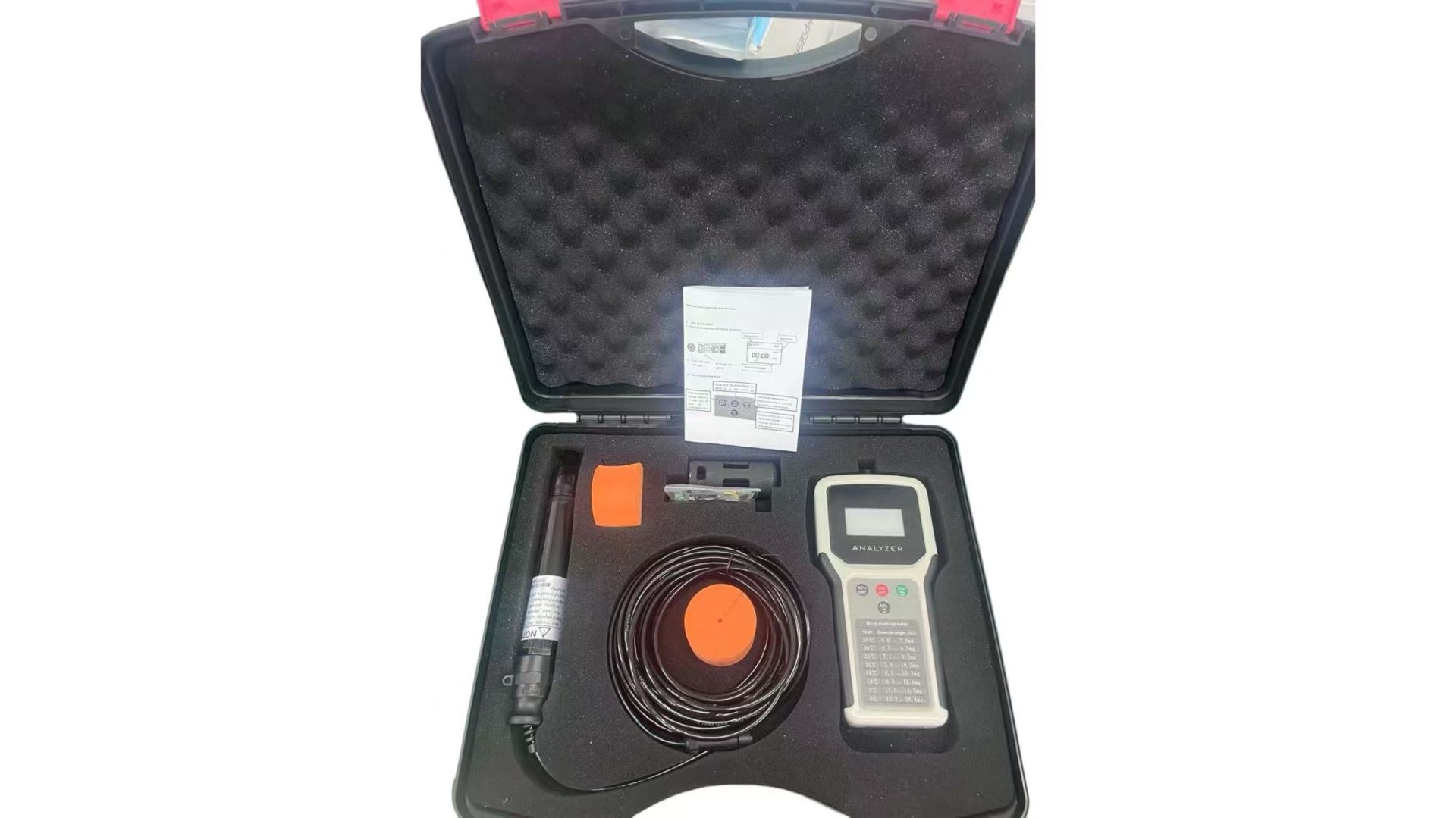

Supplied with a portable carrying case, ideal for field and on-site applications
Factory settings can be restored
Power-off data protection for over 10 years
Dissolved Oxygen: 0–20 mg/L or 0–200% saturation
Temperature: 0–50°C
Measurement Accuracy
Dissolved Oxygen:
Model B: ±0.1–0.3 mg/L
Model C: ±0.3 mg/L
Temperature: < ±0.3°C
Resolution
0.01 mg/L
Response Time
Model B: T90 < 120 s
Model C: T90 > 120 s
Power Supply
9–24 VDC (12 VDC recommended)
Output Signal
RS-485 serial communication, Modbus protocol
Operating Temperature
0–40°C
Storage Temperature
-5–60°C
Dimensions
Ø32 mm × 17 mm
Sensor Material
Housing: ABS
Optional: Titanium alloy, etc.
Recommended Applications
Model B:
Suitable for clean water environments, online monitoring, and handheld measurement needs. Offers fast response and high accuracy.
Model C:
Designed for online monitoring in aquaculture environments and suitable for harsh water conditions. The fluorescence membrane features antibacterial properties, scratch resistance, and strong anti-interference performance.
Additional Features
Supplied with a portable carrying case, ideal for field and on-site applications
Factory settings can be restored
Power-off data protection for over 10 years
