Sand Filtration System
A water treatment device that effectively intercepts and removes suspended solids, ferrous bicarbonate, and manganese bicarbonate from water. With the assistance of oxidative sterilization agents, it filters out "red water" and "black water," preventing residue spots and grime on utensils, clothing, and processed products, thereby achieving clarified water quality.
- Company NameYOUN YA INTERNATIONAL CO., LTD.

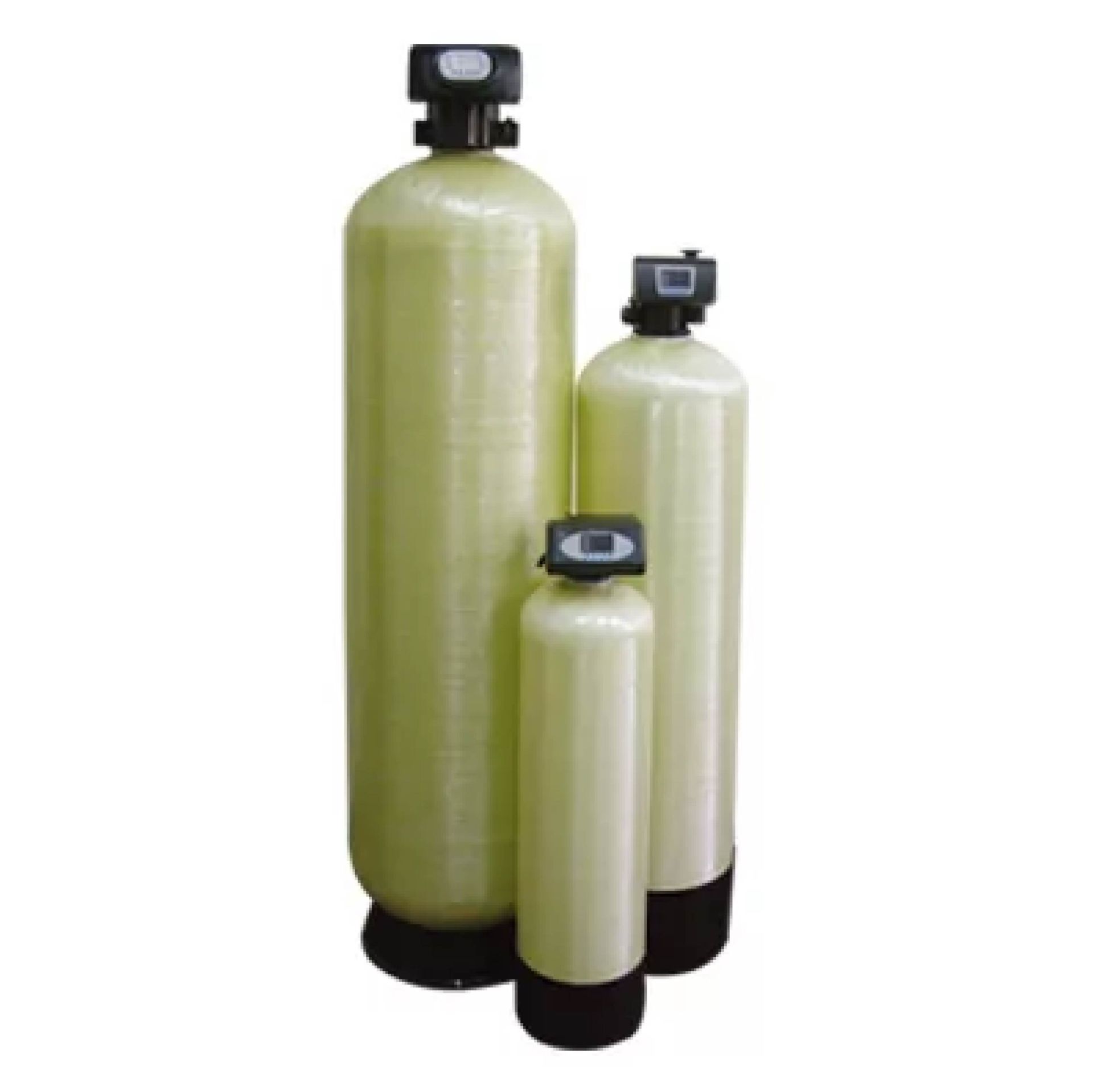

CR Series Electronic Iron and Manganese Removal Machine
I. Operating Principle:
The iron and manganese removal filtration system utilizes manganese sand or lightweight manganese sand as the filtering medium. These materials feature high hardness and a porous structure, crafted through multiple stages of mixing and firing high-grade manganese compounds. Under specific pressure, water passes through a designated depth of manganese sand or lightweight manganese sand to effectively intercept and remove suspended solids, ferrous bicarbonate, and manganese bicarbonate. With the assistance of oxidative sterilization agents, it filters out "red water" and "black water" from the water supply, preventing residue spots and grime on utensils, clothing, and processed products to achieve clarified water quality. Depending on the required water output, different mesh sizes (diameters of manganese sand or lightweight manganese sand) are equipped, allowing effluent turbidity to reach below 3 degrees.
II. Main Functions:
★ Operating Pressure: 2–3.5 kg/cm²
★ Maximum Flow Rate: 2 T/H, 6 T/H, 10 T/H
★ Control Method: LED LCD operation panel
★ Power Failure Memory: 72-hour power-off memory
★ Operation Mode: Microcomputer 24H timer
★ Micro-signal: Regeneration start signal output
★ Manual Knob: Emergency operation during power failure or damage
★ Keypad Protection: Automatic lockout after 1 minute of inactivity
★ Product Certifications: NSF, CE, RoHS, ISO
III. Product Advantages:
★ Panel Display: Segmented display of backwash cycles, current time, and backwash duration.
★ Bypass Switch: Allows for emergency raw water output without passing through the filter bed in the event of power failure or equipment damage.
★ Multi-stage Cycles: Customizable settings for multiple backwash and rinse cycles to ensure the filter bed remains unclogged and maintains high output efficiency.
