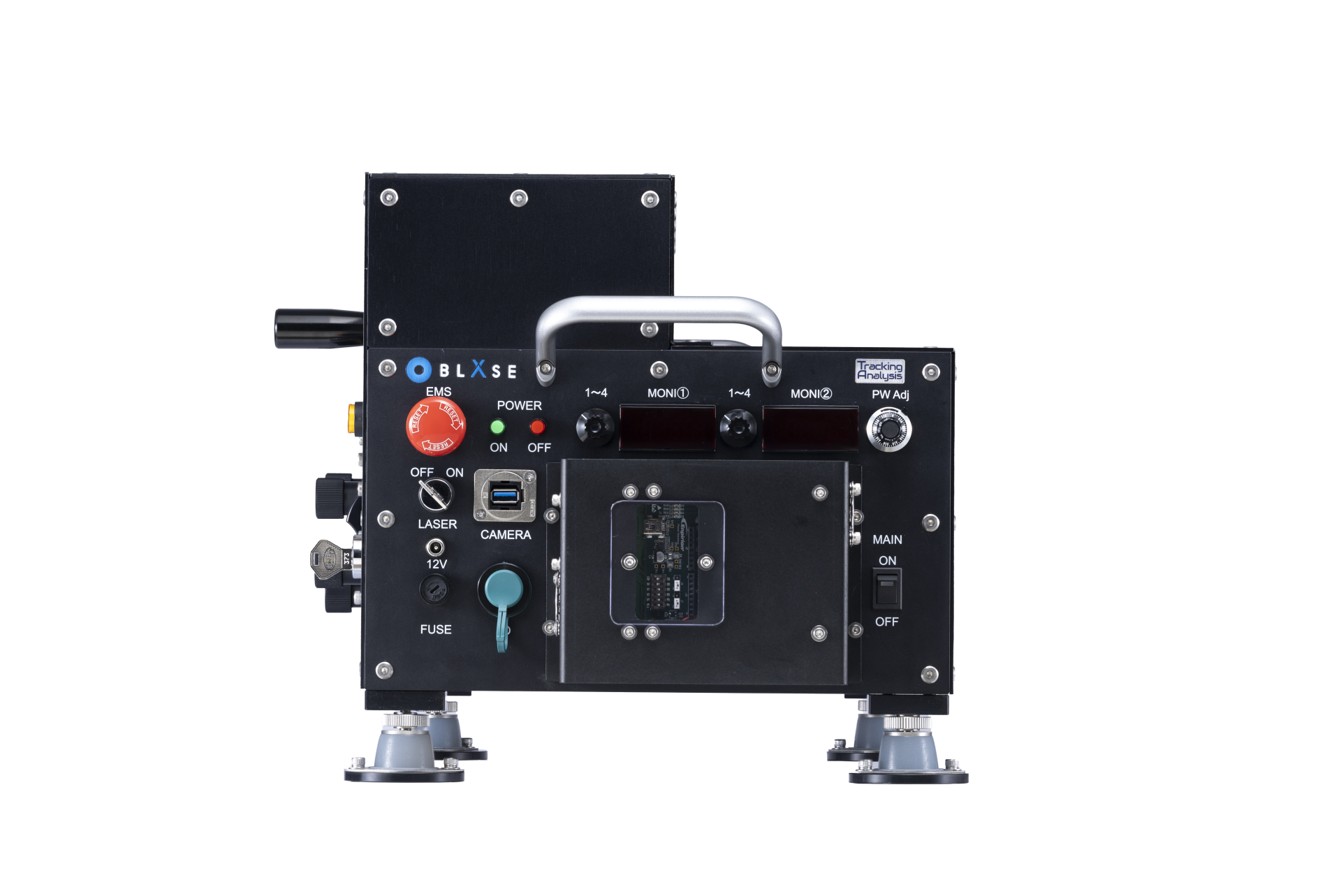

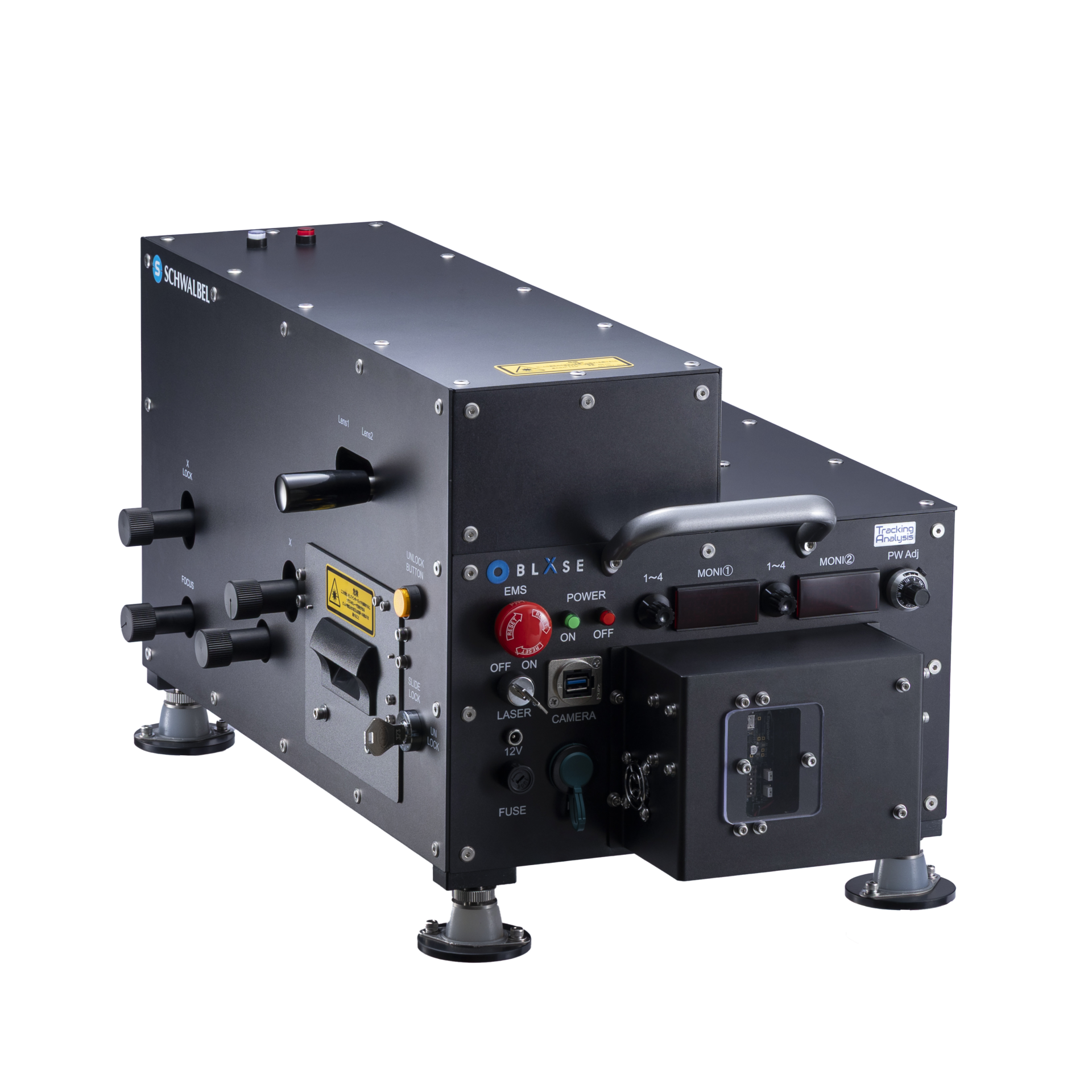

BLASE X
BLASE X is designed for both low concentration and high concentration ultrafine bubble measurements, covering a wide range from 100,000 to 1 billion particles. It enables reliable evaluation across applications where measurement conditions differ, from research to production assessment.
Equipped with interchangeable 5× and 10× objective lenses, enabling flexible measurement for both research and quality control applications.
Equipped with interchangeable 5× and 10× objective lenses, enabling flexible measurement for both research and quality control applications.
- Company NameSCHWALBEL Co., Ltd.
Wide Field-of-View Observation Function:
The BLASE Series is a state-of-the-art measurement solution featuring a wide observation area, enabling efficient measurement across a wide field of view.
BLASE X features interchangeable 5× and 10× objective lenses. The 10× objective lens increases resolution, helping distinguish closely spaced particles in high-concentration samples and enabling accurate measurement.
PTA (Particle Tracking Analysis) Measurement Function:
Using a camera and thin laser sheet illumination, BLASE tracks Brownian motion of particles and performs UFB evaluation based on the Particle Tracking Analysis (PTA) method.

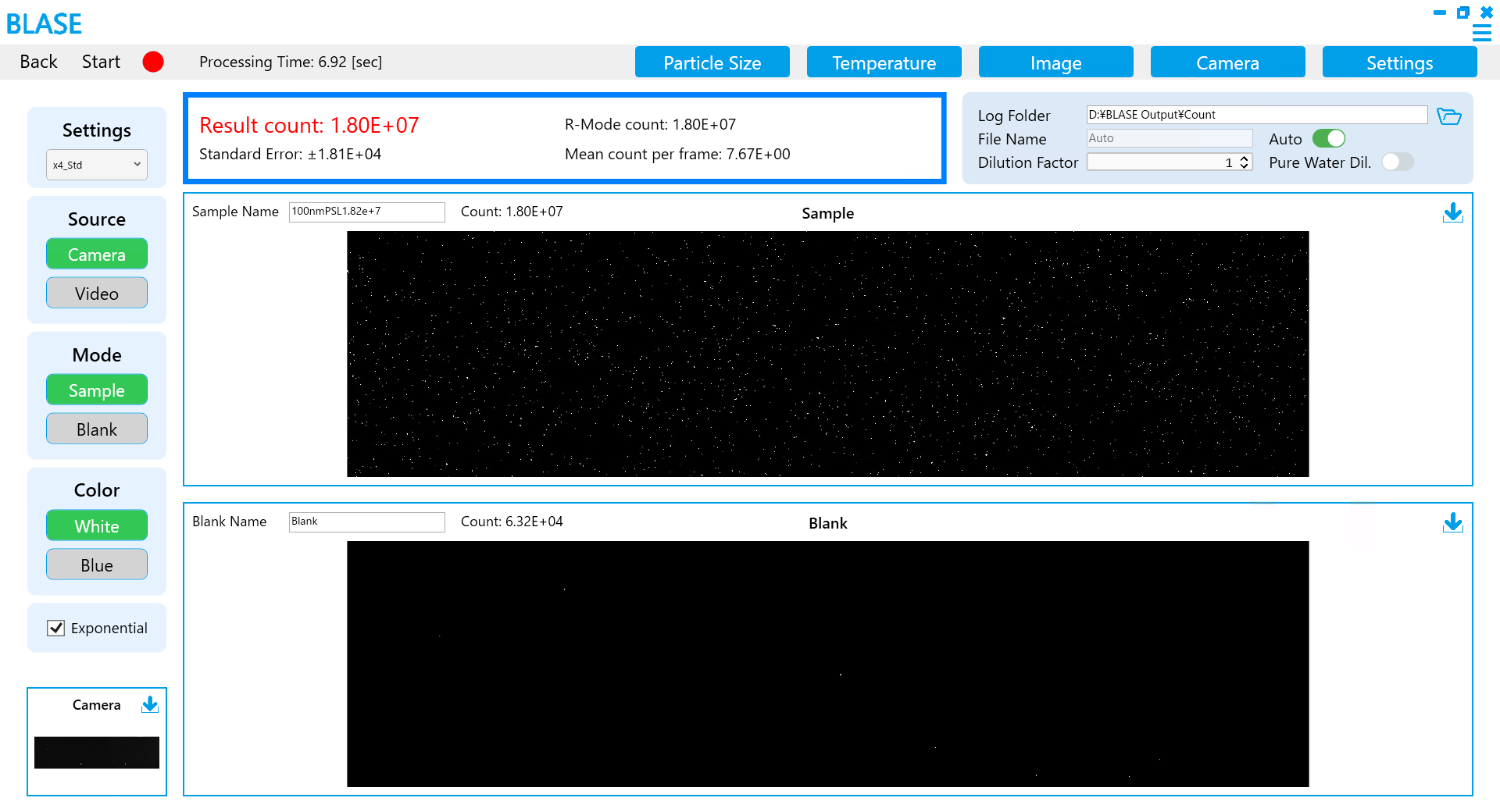

Fast Particle Count Verification Function:
Particle count measurement is completed in approx.10 seconds. By measuring blank water and the sample after UFB generation, the number of generated bubbles can be confirmed by comparison.

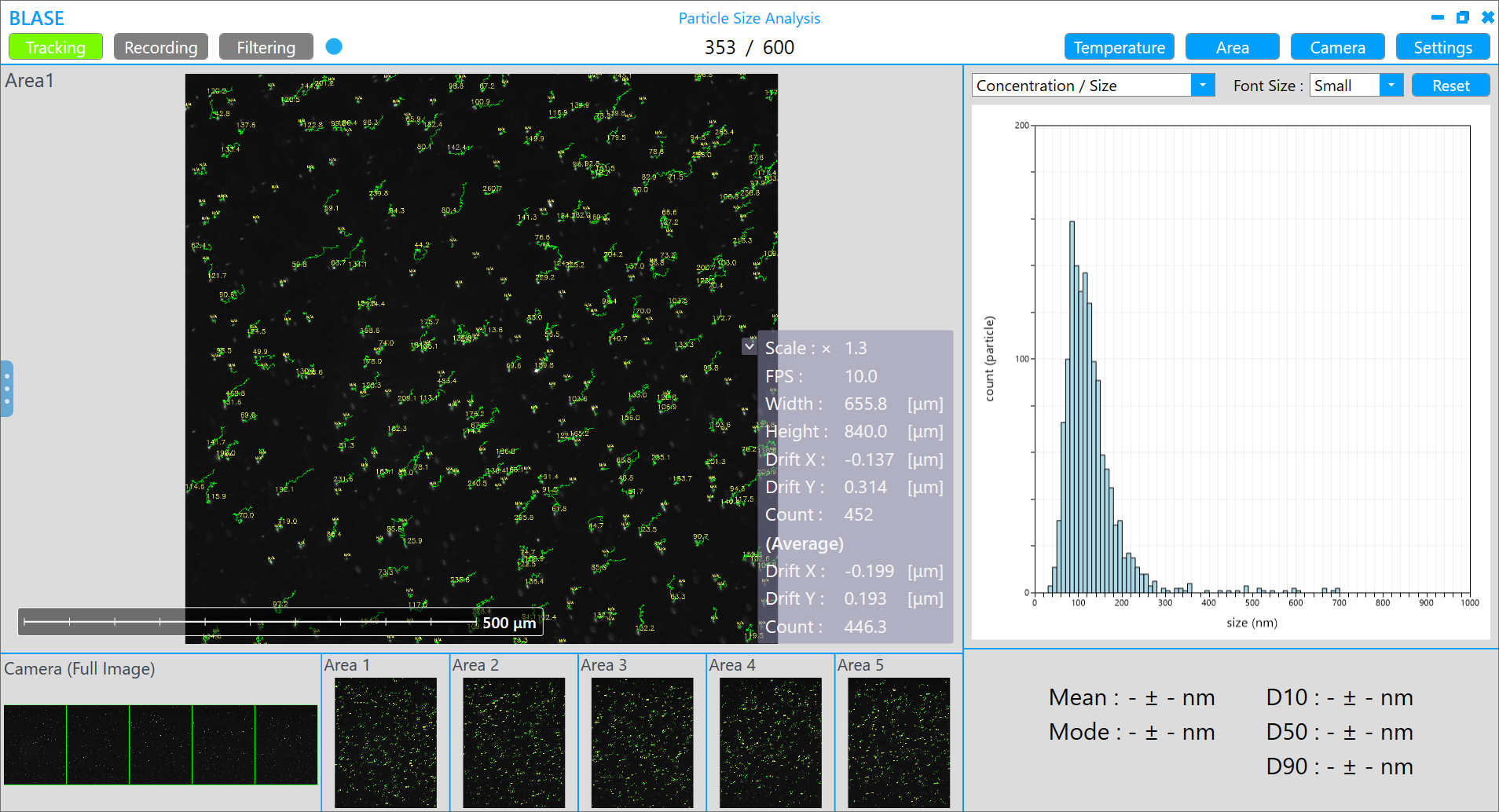

Particle Size Analysis Function (BLASE / BLASE X):
Particle size is calculated by tracking Brownian motion and applying the Stokes–Einstein equation. BLASE performs parallel processing by dividing the field of view, enabling size analysis in approx.2 minutes.
Calibration & Standardized Measurement Function:
Calibration is performed using PSL standard particles (60 nm and 100 nm) with particle size, number concentration, and scattering characteristics similar to the measurement target. This enables measurement under consistent conditions across different measurements.
