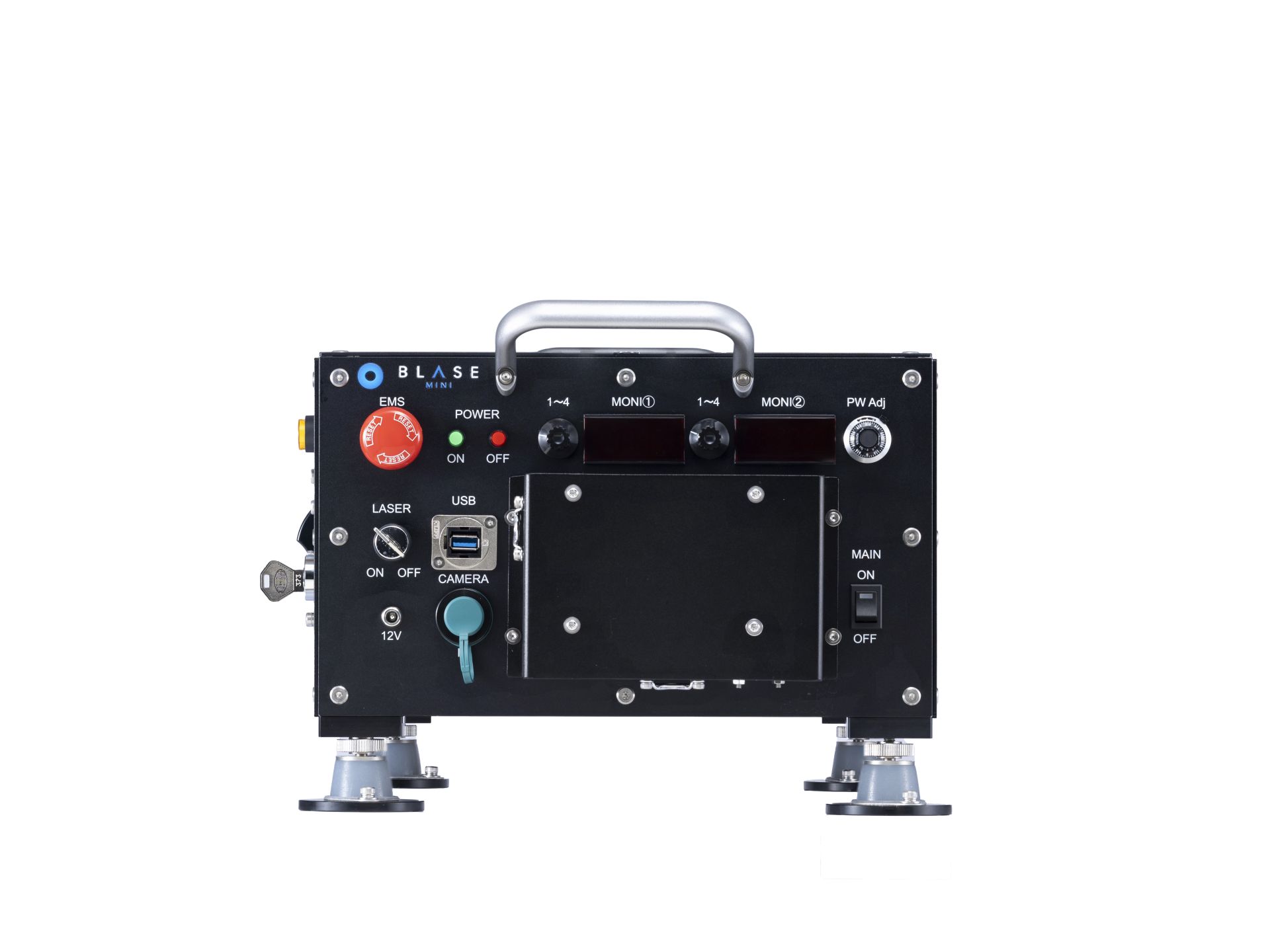

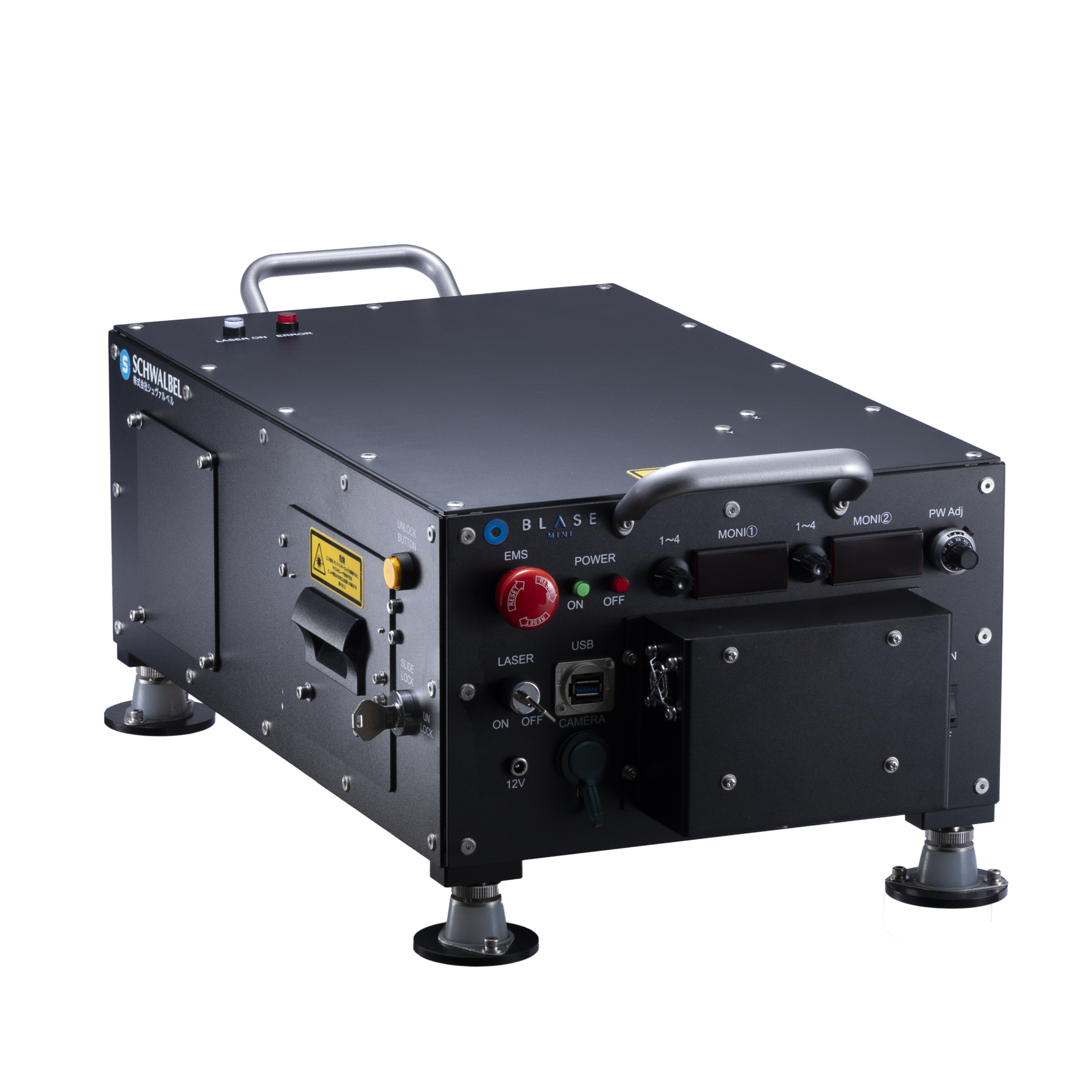

BLASE MINI
BLASE MINI is a compact measurement solution designed for ultrafine bubble (UFB) particle count monitoring. It is optimized for low concentration samples from 10,000 to 10 million particles, enabling quick verification and routine checks.
- Company NameSCHWALBEL Co., Ltd.
Wide Field-of-View Observation Function:
The BLASE Series is a state-of-the-art measurement solution featuring a wide observation area of approx. 3.3 mm × 0.8 mm, enabling efficient measurement across a wide field of view.
Measurement Function:

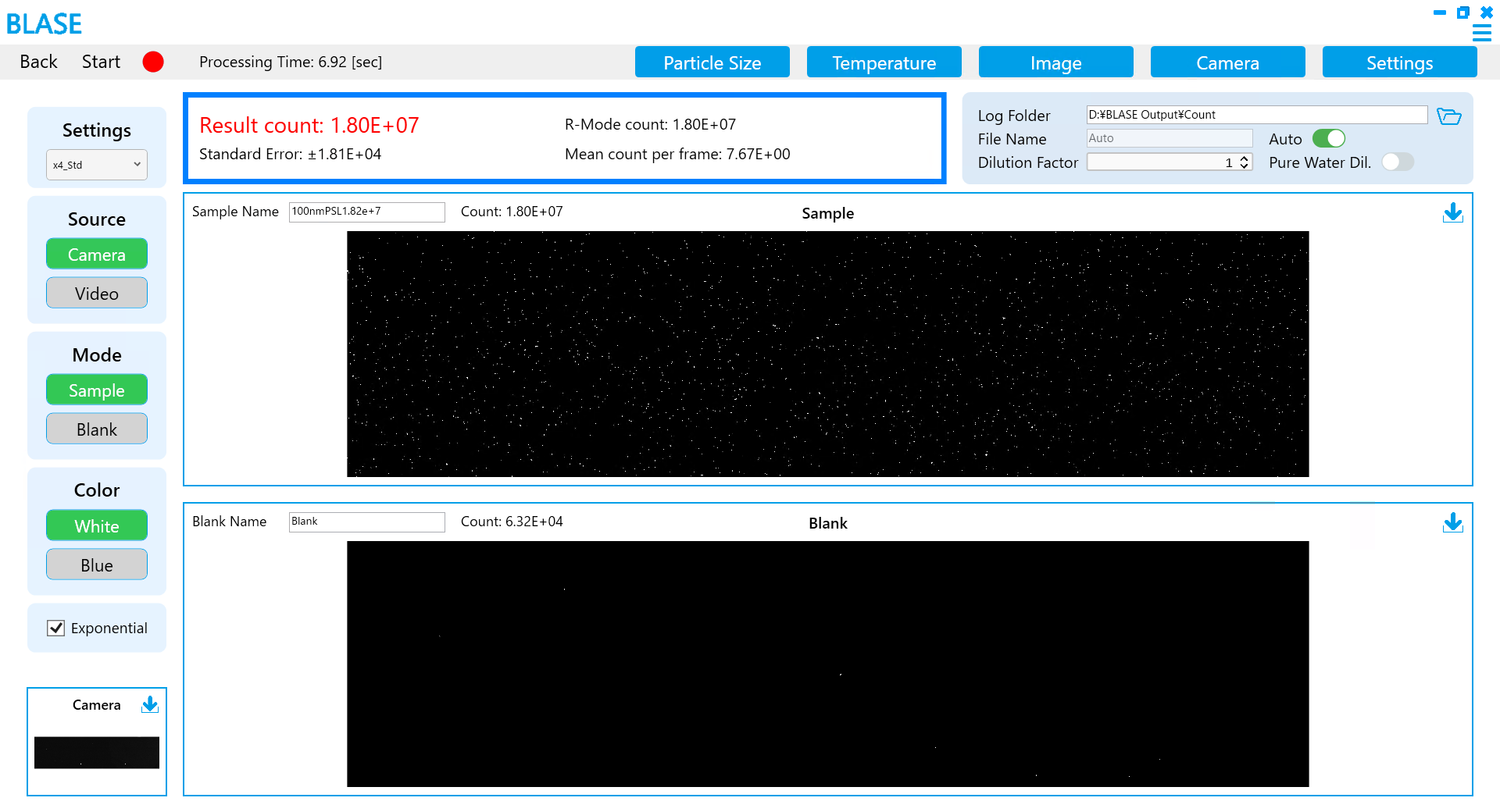

BLASE MINI acquires particle images and applies image analysis to determine the total particle number concentration.
Fast Particle Count Verification Function:
Particle count measurement is completed in approx.10 seconds. By measuring blank water and the sample after UFB generation, the number of generated bubbles can be confirmed by comparison.
Calibration & Standardized Measurement Function:
Calibration is performed using PSL standard particles (60 nm and 100 nm) with particle size, number concentration, and scattering characteristics similar to the measurement target. This enables measurement under consistent conditions across different measurements.
Intellectual Property & Compatible with Mobile battery:
Incorporates patented core technologies for reliable ultrafine bubble measurement.
Compatible with mobile battery power for flexible, portable operation.
