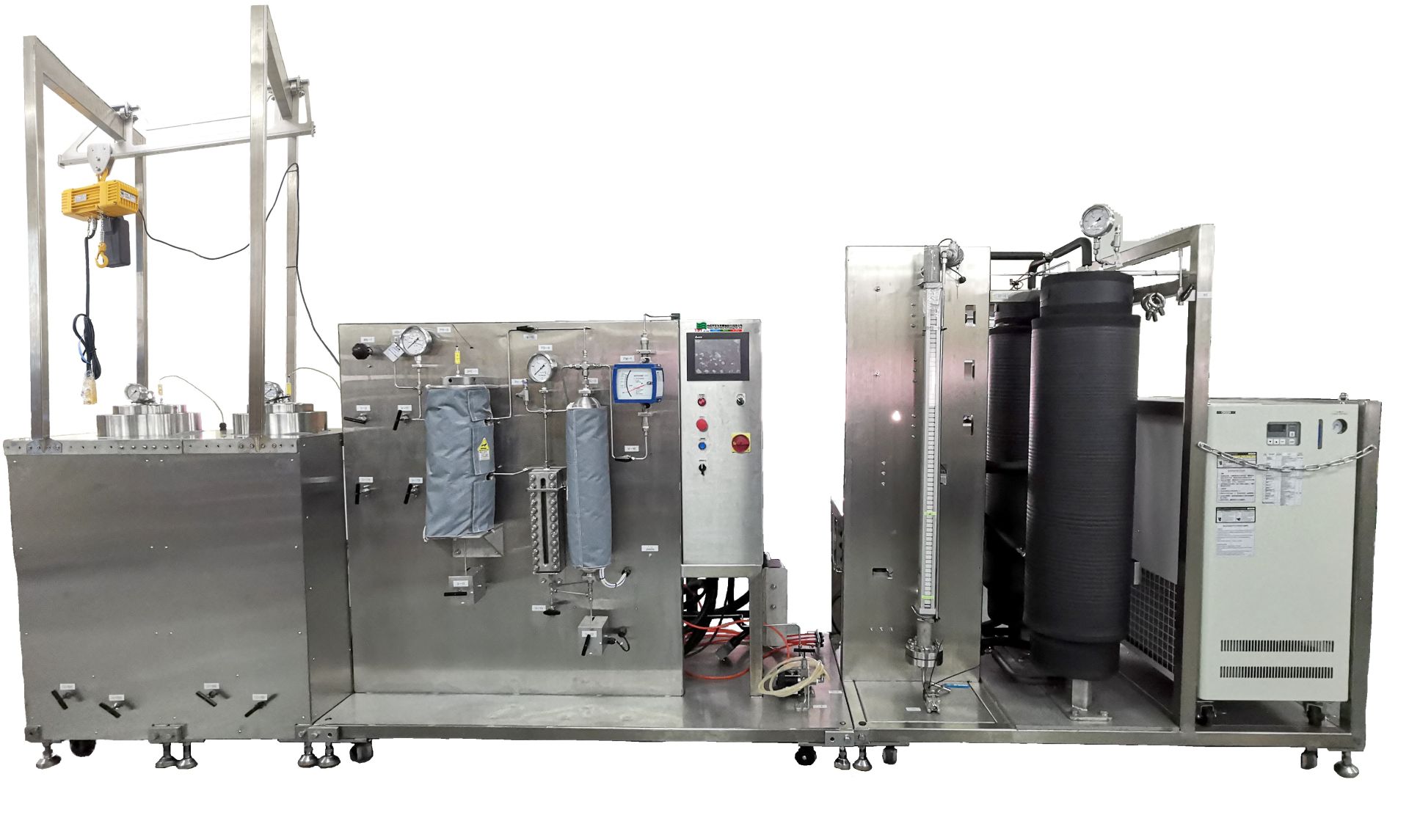

Supercritical CO2 20L/20Lx2 Extraction Equipment

Specifications
(1) Operation temperature: MAX. 80℃
(2) Operation pressure: MAX. 7250 psi / 500 bar
(3) Operation capacity: 20Lx2
(4) Separation tank x2
(5) HMI and automatic control
(6) Monitor and control system for pressure and temperature: 7" color Touch Panel HMI
(7) Co-solvent pump
(8) Heating system: Electric heating
(9) Cooling system
(10) CO2 Inner Recycling Loop.
(11) LCO2 storage Tank x2
(12) CO2 recycling system : 70% recycling rate by pressure difference.
(13) Certification:
a. ISO 9001:2015 (design, development, manufacturing, and sales)
b. Whole system pass CE certificate
