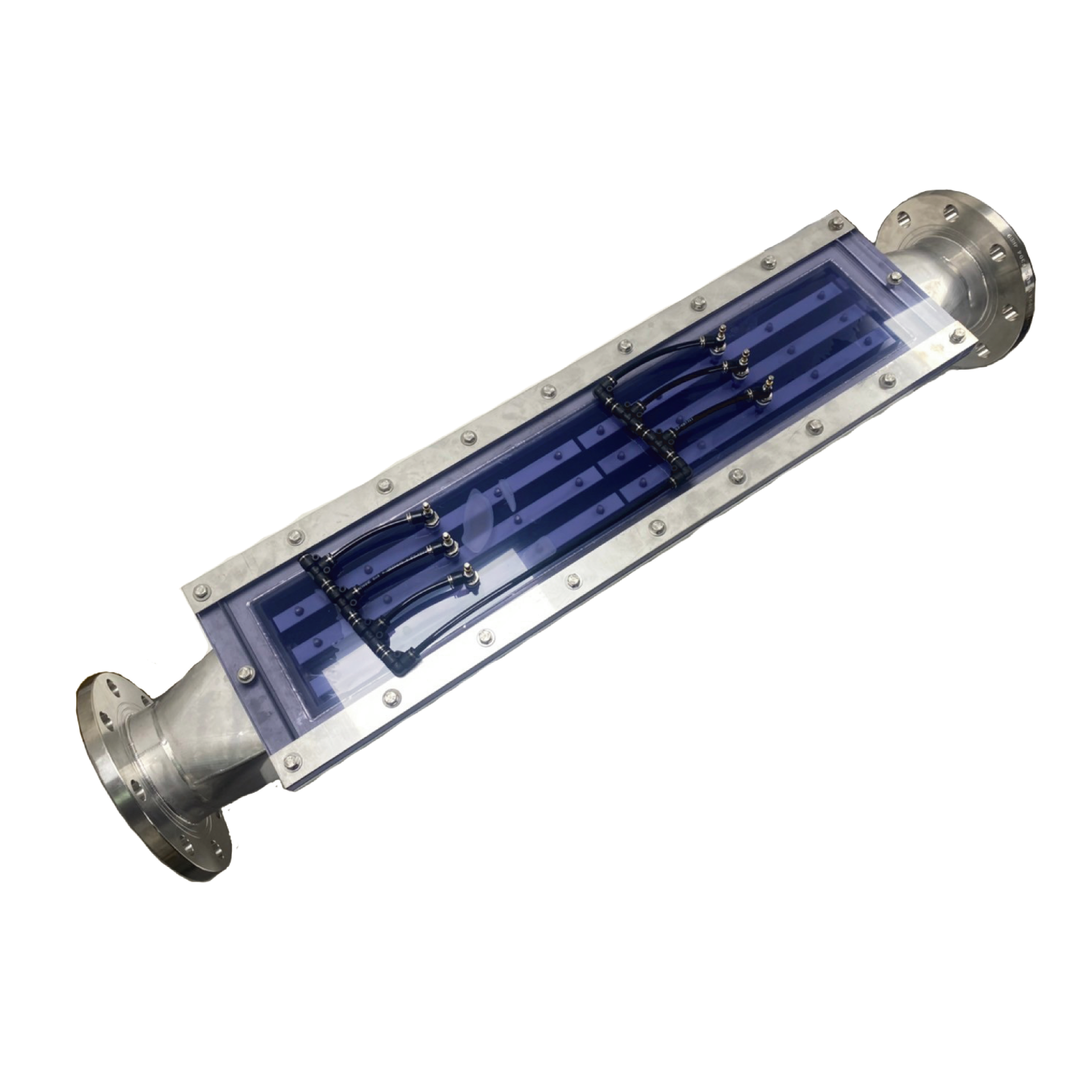

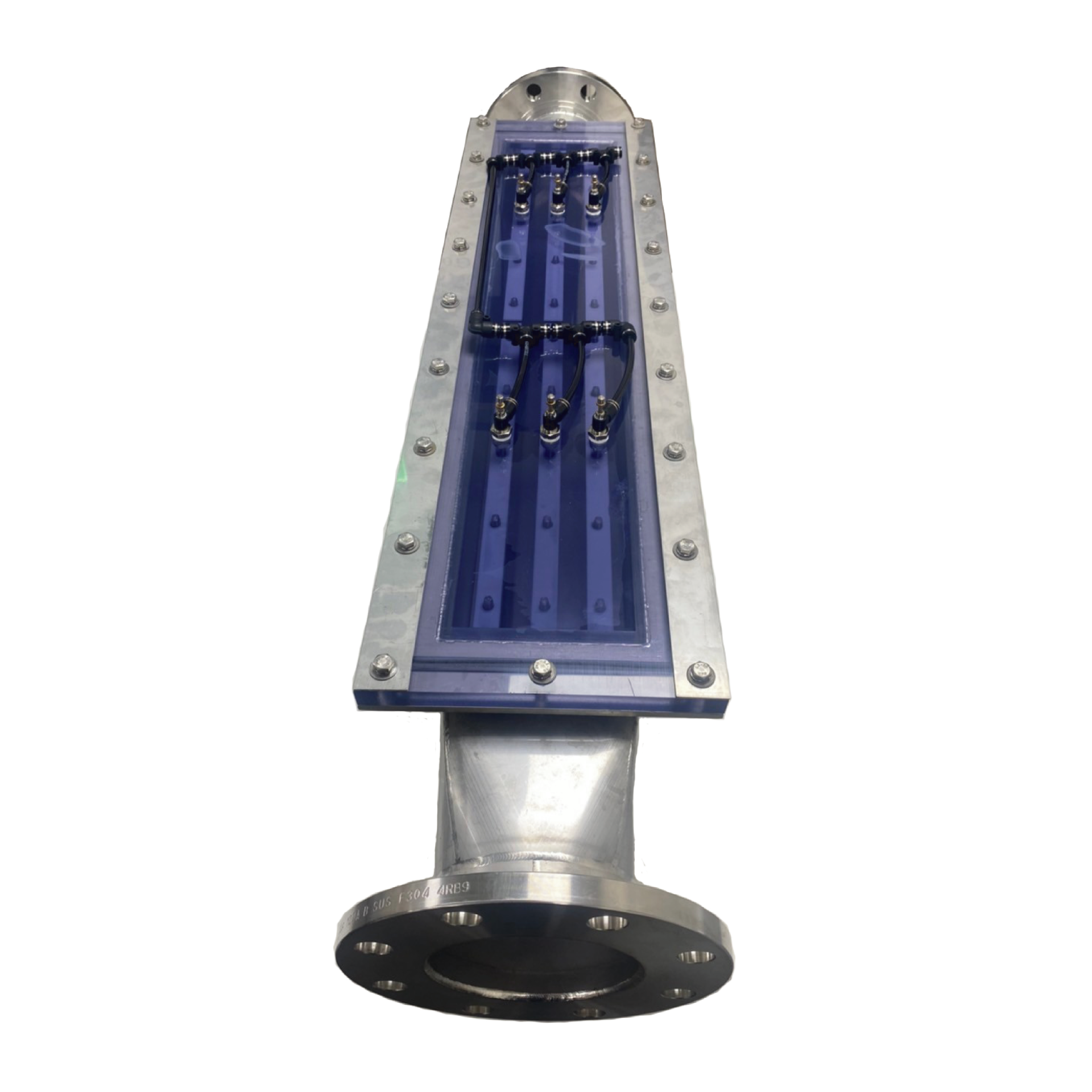

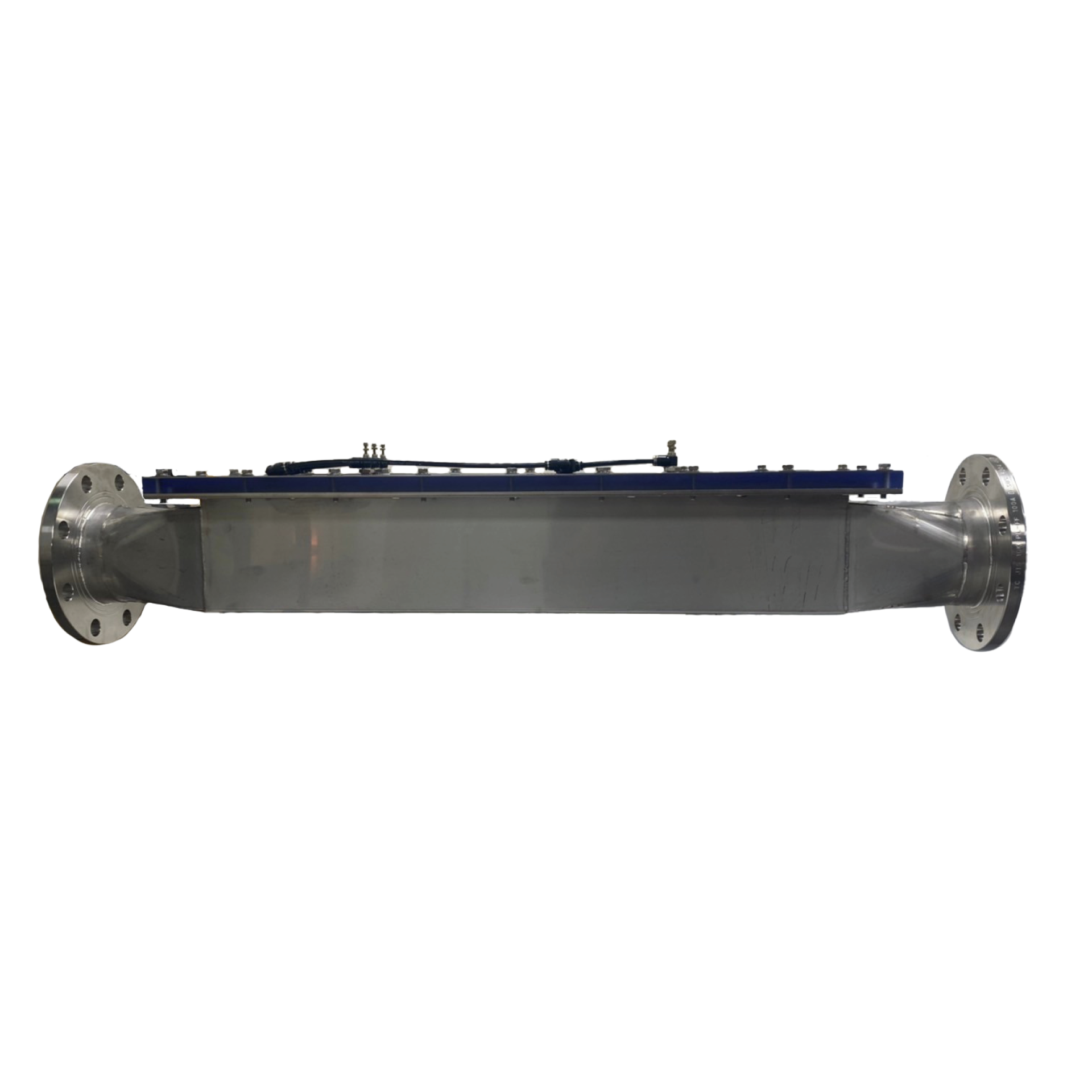

Ultrafine Bubble Generator GC100A - L
高效能超微細氣泡技術，水流經由特殊核心產生大量奈米氣泡，搭配各種氣體用於增氧、殺菌、消毒、除藻、等等。
By using different gases, the system can produce different effects, such as

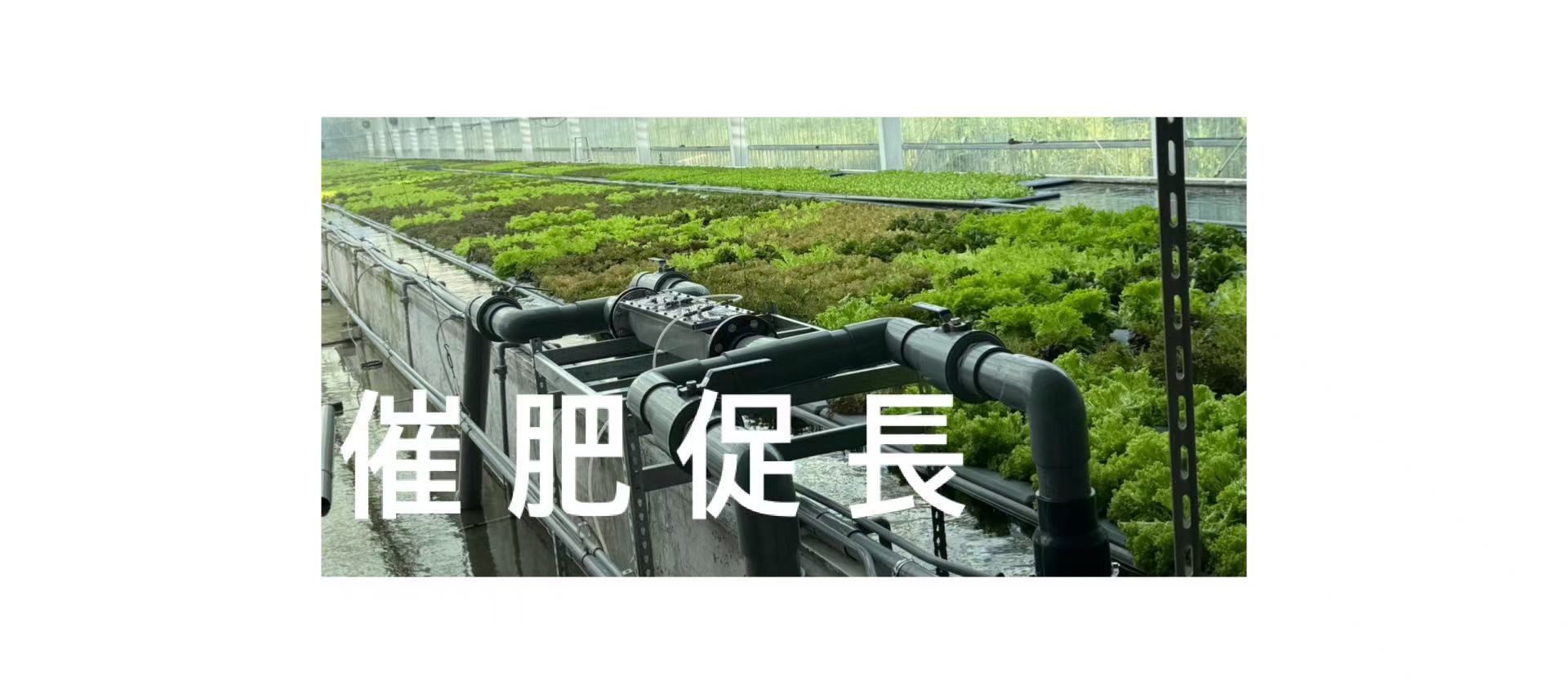

◎ Oxygen → increases dissolved oxygen levels in water, accelerates plant growth, and allows higher planting and aquaculture density
◎ Hydrogen → promotes faster plant growth
◎ Ozone → provides high-efficiency sterilization, safe detoxification, food preservation, natural bleaching, and rapid deodorization
By using different gases, the system can produce different effects, such as
◎ Oxygen → increases dissolved oxygen levels in water, accelerates plant growth, and allows higher planting and aquaculture density
◎ Hydrogen → promotes faster plant growth
◎ Ozone → provides high-efficiency sterilization, safe detoxification, food preservation, natural bleaching, and rapid deodorization
- Company NameGEON INTERTEC CO., LTD.
This product is designed for large-volume water systems with a maximum capacity of approximately 700 tons of water.
It converts functional gases such as oxygen, hydrogen, and ozone into nanobubbles and injects them into the water, significantly extending gas residence time in water and increasing the effective gas–liquid reaction surface area.

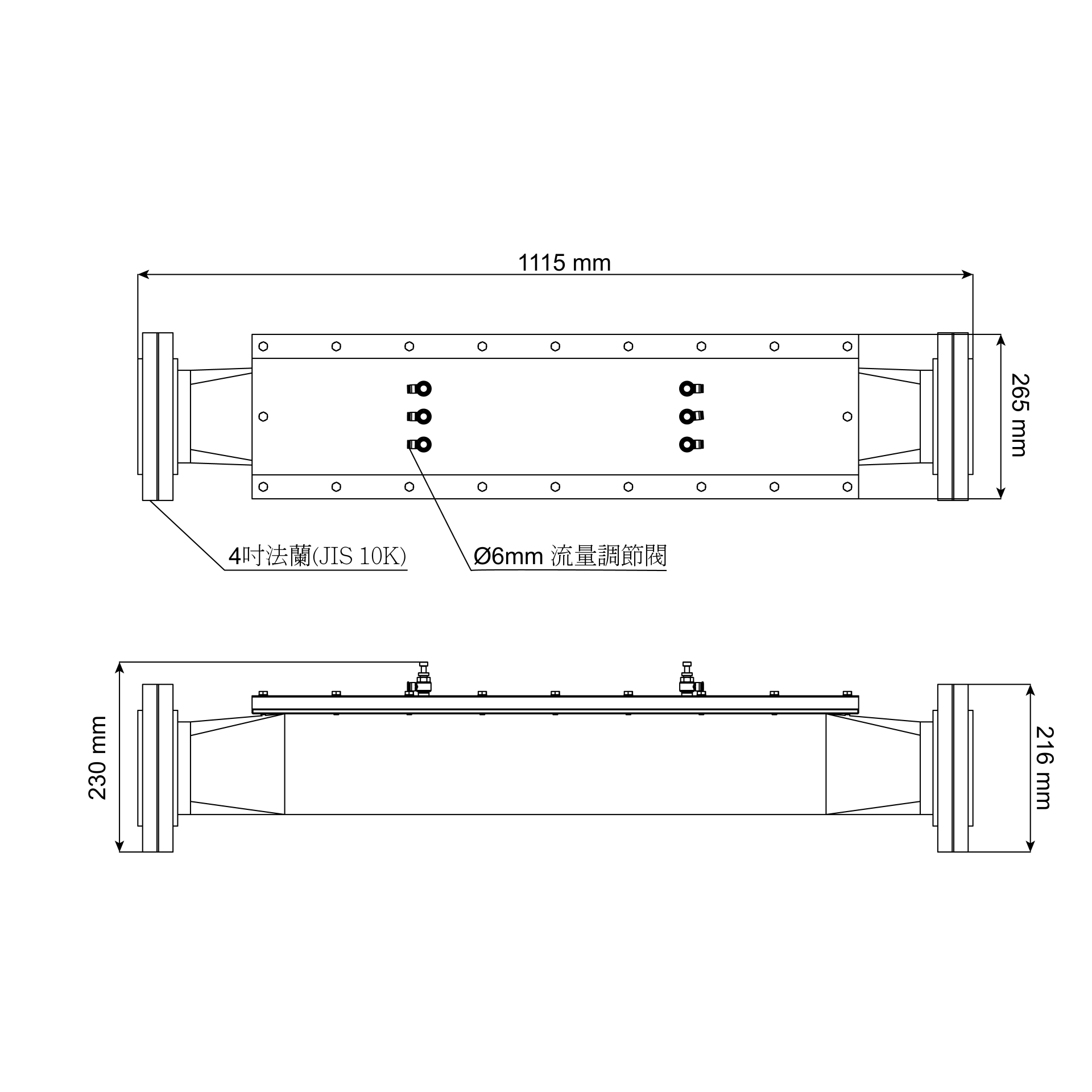

Product Specifications
Gas pressure: 30–700 kPa
Gas flow rate: 30 L/min at 0.2 MPa
Gas tube connection: Ø6 mm
Pump flow rate: 500–1,500 L/min
Housing material
Main body: SUS304 or SUS316 stainless steel
Cover: Gray PVC
Sealing ring: NBR
Piping connection
Pipe size: 4-inch
Connection type: Union-type flange
Standard: JIS 100A / 10K
It converts functional gases such as oxygen, hydrogen, and ozone into nanobubbles and injects them into the water, significantly extending gas residence time in water and increasing the effective gas–liquid reaction surface area.
Product Specifications
Gas pressure: 30–700 kPa
Gas flow rate: 30 L/min at 0.2 MPa
Gas tube connection: Ø6 mm
Pump flow rate: 500–1,500 L/min
Housing material
Main body: SUS304 or SUS316 stainless steel
Cover: Gray PVC
Sealing ring: NBR
Piping connection
Pipe size: 4-inch
Connection type: Union-type flange
Standard: JIS 100A / 10K
