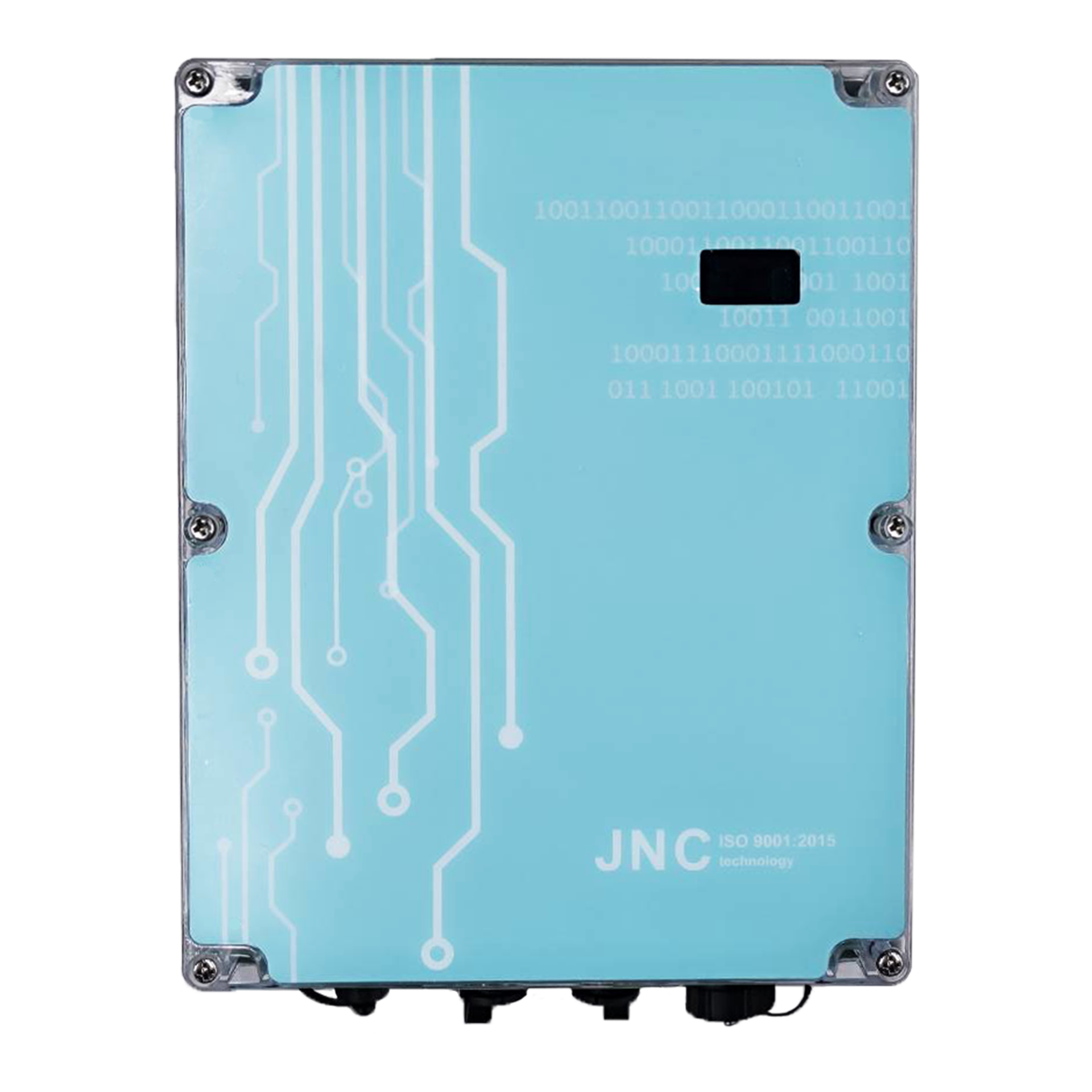

Cloud Box
[Features]
◼ Embedded Edge AI : Using a PLC-like architecture,it features logic processing and on-site control capabilities. Once the logic configuration is completed, it can operate independently to determine and control field equipment even without an internet connection.
◼ Seamless integration with JNC SCADA : Supports full read/write access with the JNC SCADA system, allowing remote configuration of the CB directly through the SCADA platform, significantly enhancing management efficiency.
◼ Built-in web interface allows remote management and configuration via browser.
◼ Equipped with an IP68 waterproof enclosure, featuring moisture, heat, and shock resistance.
◼ Optional SMS alert function supports full Chinese interface and power outage notifications.
◼ Global software updates/upgrades supported via email.
◼ Supports a three-network architecture : RJ-45 wired, 4G (optional), and Wi-Fi (optional).
◼ Real-time 4G signal strength monitoring and optional GPS positioning function.
◼ Supports automatic switching between mains power, solar power, and battery, with configurable sleep mode for high energy efficiency.
◼ Compatible with solar panel charging, with battery level and charging status monitoring to ensure optimal power generation performance.
◼ Integrated 0.96-inch color LCD displays real-time field data, USB status, and date/time.
◼ Provides 5V / 12V / 24V power outputs ( jumper selectable) to support various sensor requirements.
[Applications]
Environmental monitoring, meteorological monitoring, independent monitoring stations, flood monitoring, pollution monitoring, sewage treatment plants, water plants.
◼ Embedded Edge AI : Using a PLC-like architecture,it features logic processing and on-site control capabilities. Once the logic configuration is completed, it can operate independently to determine and control field equipment even without an internet connection.
◼ Seamless integration with JNC SCADA : Supports full read/write access with the JNC SCADA system, allowing remote configuration of the CB directly through the SCADA platform, significantly enhancing management efficiency.
◼ Built-in web interface allows remote management and configuration via browser.
◼ Equipped with an IP68 waterproof enclosure, featuring moisture, heat, and shock resistance.
◼ Optional SMS alert function supports full Chinese interface and power outage notifications.
◼ Global software updates/upgrades supported via email.
◼ Supports a three-network architecture : RJ-45 wired, 4G (optional), and Wi-Fi (optional).
◼ Real-time 4G signal strength monitoring and optional GPS positioning function.
◼ Supports automatic switching between mains power, solar power, and battery, with configurable sleep mode for high energy efficiency.
◼ Compatible with solar panel charging, with battery level and charging status monitoring to ensure optimal power generation performance.
◼ Integrated 0.96-inch color LCD displays real-time field data, USB status, and date/time.
◼ Provides 5V / 12V / 24V power outputs ( jumper selectable) to support various sensor requirements.
[Applications]
Environmental monitoring, meteorological monitoring, independent monitoring stations, flood monitoring, pollution monitoring, sewage treatment plants, water plants.
- Company NameJNC TECHNOLOGY CO., LTD.
◼ Power : DC12~36V，Power consumption : ≦3.6W
◼ Working Environment
Operating Temperature : -20°C~70°C (-4°F~158°F)、(WiFi 0~70°C)
Storage Temperature : -20°C~70°C (-4°F~158°F)
Relative Humidity : 0~95 % RH non-condensing
◼ Communication Function
Ethernet Interface : RJ-45 Ethernet, Modbus TCP communication protocl
Ethernet Communication Function : Web Service, standard Modbus communication protocol, http upload, MQTT upload
Communication Interface : RS-485 x2 group, Master and Slave can be modified freely
Communication Protocol : Standard Modbus communication protocl
4G Communication Function : Alarm ring and text message, http(s) upload, MQTT(s) upload
◼ Signal Input
Analog Input (AI) : 4-20 mA x1
Digital Input (DI) : DI x2, can do switching counting within 200Hz
Digital Output (DO) : Dry contact x1, DC24V 1A, need to be connected to relay
◼ Display Panel : 0.96 inch, TFT-LCD
◼ Physical Conditions
Dimension ( W×H×D，mm ) : Code 3 Optional L、C : 252 x 175 x 60，Code 3 Optional A : 300x400x150
Weight : Code 3 Optional L、C : <0.7kg，Code 3 Optional A : <3.5kg
◼ Shell Specifications
Material : Code 3 Optional L、C : PC + Anti-UV，Code 3 Optional A : ABS
◼ Record : USB recording function, supports up to 64GB (FAT32 format)
◼ Working Environment
Operating Temperature : -20°C~70°C (-4°F~158°F)、(WiFi 0~70°C)
Storage Temperature : -20°C~70°C (-4°F~158°F)
Relative Humidity : 0~95 % RH non-condensing
◼ Communication Function
Ethernet Interface : RJ-45 Ethernet, Modbus TCP communication protocl
Ethernet Communication Function : Web Service, standard Modbus communication protocol, http upload, MQTT upload
Communication Interface : RS-485 x2 group, Master and Slave can be modified freely
Communication Protocol : Standard Modbus communication protocl
4G Communication Function : Alarm ring and text message, http(s) upload, MQTT(s) upload
◼ Signal Input
Analog Input (AI) : 4-20 mA x1
Digital Input (DI) : DI x2, can do switching counting within 200Hz
Digital Output (DO) : Dry contact x1, DC24V 1A, need to be connected to relay
◼ Display Panel : 0.96 inch, TFT-LCD
◼ Physical Conditions
Dimension ( W×H×D，mm ) : Code 3 Optional L、C : 252 x 175 x 60，Code 3 Optional A : 300x400x150
Weight : Code 3 Optional L、C : <0.7kg，Code 3 Optional A : <3.5kg
◼ Shell Specifications
Material : Code 3 Optional L、C : PC + Anti-UV，Code 3 Optional A : ABS
◼ Record : USB recording function, supports up to 64GB (FAT32 format)
