IoT Underwater Camera
■ 2 million pixels, 1/2.8” CMOS sensor.
■ Resolution 1920x1080.
■ Clear and high-quality color images, automatic switching between day and night.
■ The 4G host complies with B1, B3, B7, B8, B20, B28 and other communication frequency bands
■ Can be directly displayed on the platform webpage.
■ When there is an abnormal event, automatically collect the trend graph and image, and the image can be called back.

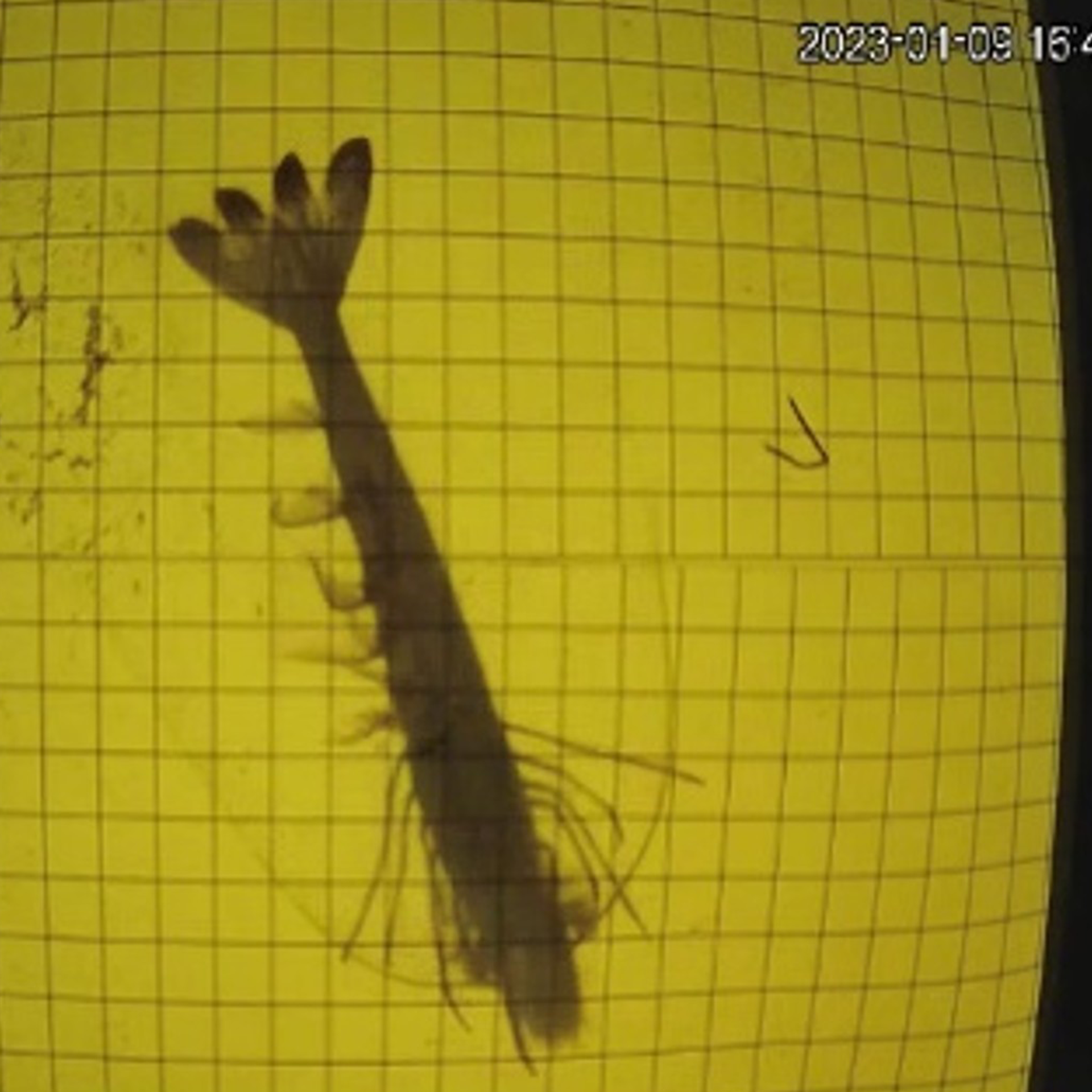

■ Capable of shooting underwater images.
■ The light bar design makes the image uninterrupted for 24 hours.
■ The brightness of the light bar can be adjusted according to the needs of the site.
■ Comply with RTSP and RTMP communication methods, and the image output is not limited.
■ The depth of seawater should be less than 1.5m, and the depth of fish pond should be less than 3m.
■ Resolution 1920x1080.
■ Clear and high-quality color images, automatic switching between day and night.
■ The 4G host complies with B1, B3, B7, B8, B20, B28 and other communication frequency bands
■ Can be directly displayed on the platform webpage.
■ When there is an abnormal event, automatically collect the trend graph and image, and the image can be called back.
■ Capable of shooting underwater images.
■ The light bar design makes the image uninterrupted for 24 hours.
■ The brightness of the light bar can be adjusted according to the needs of the site.
■ Comply with RTSP and RTMP communication methods, and the image output is not limited.
■ The depth of seawater should be less than 1.5m, and the depth of fish pond should be less than 3m.
- Company NameJNC TECHNOLOGY CO., LTD.
■ Underwater Camera Specification:
Power : DC12V
Power Consumption : <4.9 W
Dimension : 507x424.86x550(WxDxH,mm)
Weight : <25kg
Shell Material : Stainless steel
Installation Method : Submersible
Placement Depth Seawater : <1.5m
Fishpond : <3m
Visible Range : 390x360mm
■ Video Specification:
Photosensitive Element : 1/2.8”CMOS
Effective Pixels : 1920(H) x 1080(V)
Electronic Shutter : Automatic / manual,1/3s~1/100,000s
Minimum Illumination: 0.002Lux @ F1.6
SNR : >56dB
Close focal length : 0.6m
Angle of view : 106°(H) x 56°(V) x 126°(D)
Photography range Horizontal : 0 ̊~360 ̊, Vertical: 0 ̊~90 ̊, Rotation: 0 ̊~360 ̊
Power : DC12V
Power Consumption : <4.9 W
Dimension : 507x424.86x550(WxDxH,mm)
Weight : <25kg
Shell Material : Stainless steel
Installation Method : Submersible
Placement Depth Seawater : <1.5m
Fishpond : <3m
Visible Range : 390x360mm
■ Video Specification:
Photosensitive Element : 1/2.8”CMOS
Effective Pixels : 1920(H) x 1080(V)
Electronic Shutter : Automatic / manual,1/3s~1/100,000s
Minimum Illumination: 0.002Lux @ F1.6
SNR : >56dB
Close focal length : 0.6m
Angle of view : 106°(H) x 56°(V) x 126°(D)
Photography range Horizontal : 0 ̊~360 ̊, Vertical: 0 ̊~90 ̊, Rotation: 0 ̊~360 ̊
