Smart Control Box
Includes: A01-Four-way Standard Version, A02-Four-way Solenoid Valve Version DC24V, A03-Four-way Solenoid Valve Version AC24V, A04-Sixteen-way Standard Version
- Company NameKIAO FARMING CO., LTD.

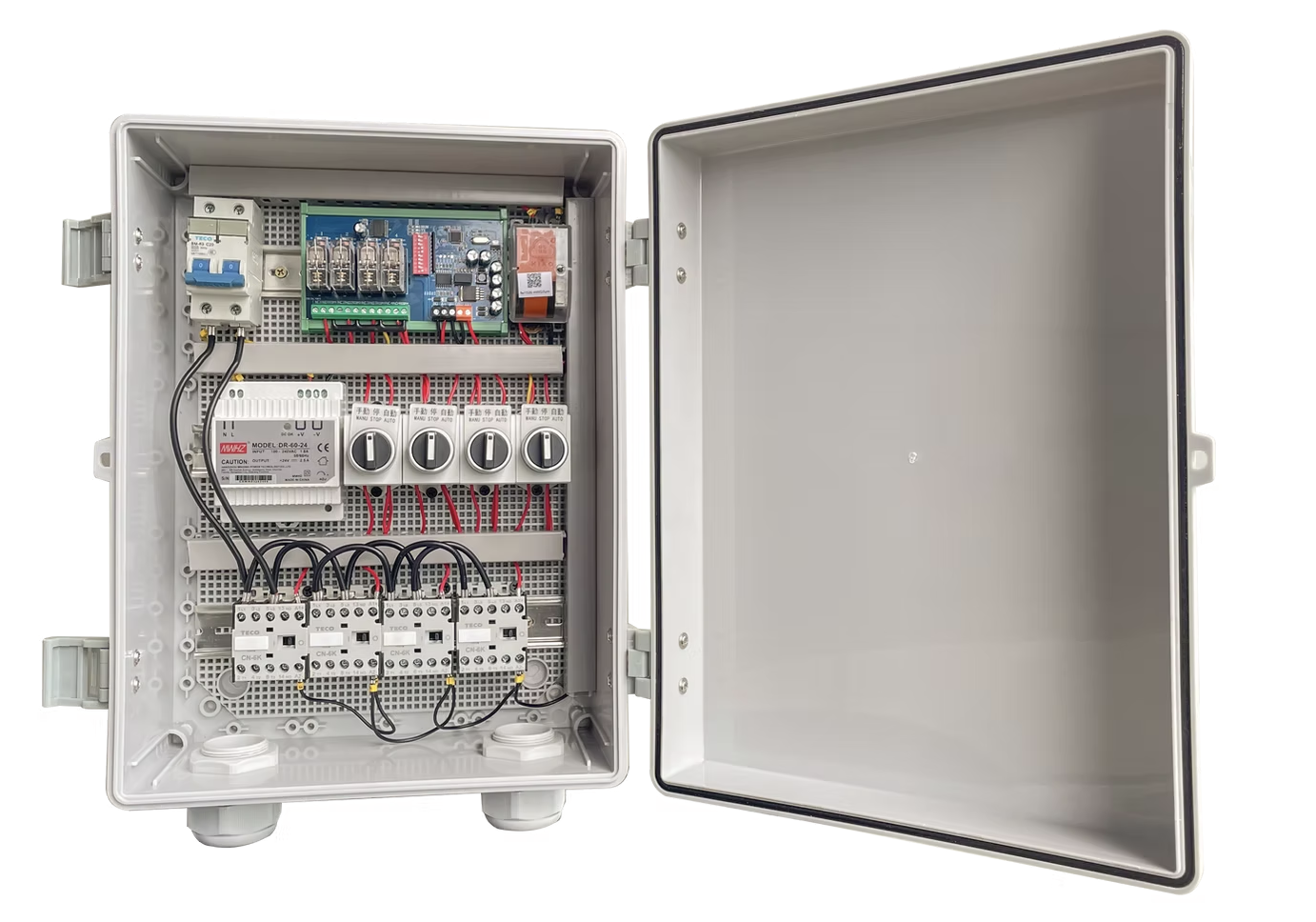

A01-Four-way standard version Contact quantity:
4 Device voltage (output): AC110-230V
Single channel current limit: 10A
Overload protection: optional
Total load current limit: 50A
Input voltage: AC110-230V

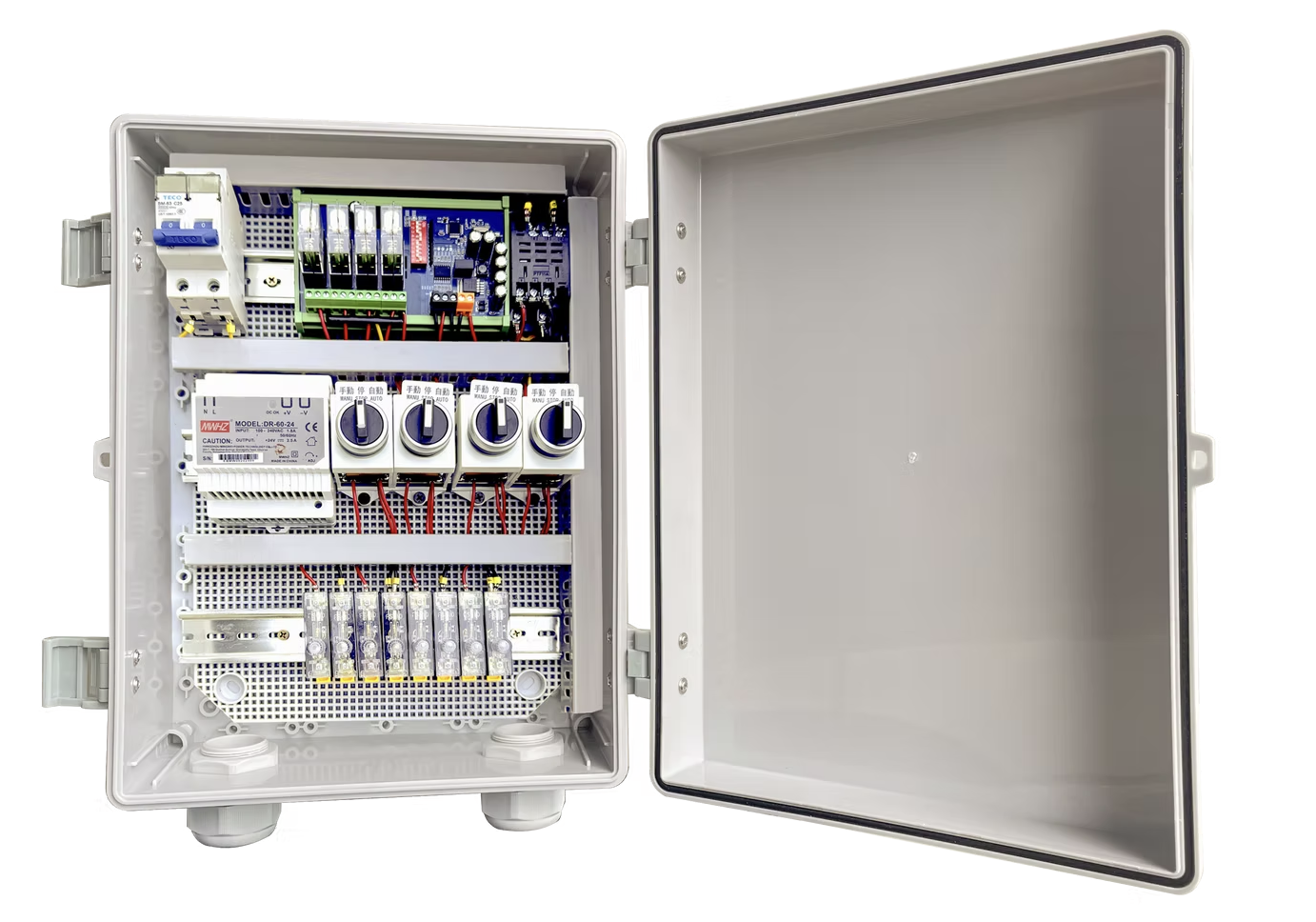

A02-Four-way solenoid valve version DC24V Contact quantity:
4 Device voltage (output): DC24V
Single channel current limit: 1A
Overload protection: 1A (fuse) Total load current limit: 20A
Input voltage: AC110-230V
A03-Four-way solenoid valve version AC24V Contact quantity:
4 Device voltage (output): AC24V
Single channel current limit: 1A
Overload protection: 1A (fuse)
Total load current limit: 20A
Input voltage: AC110-230V

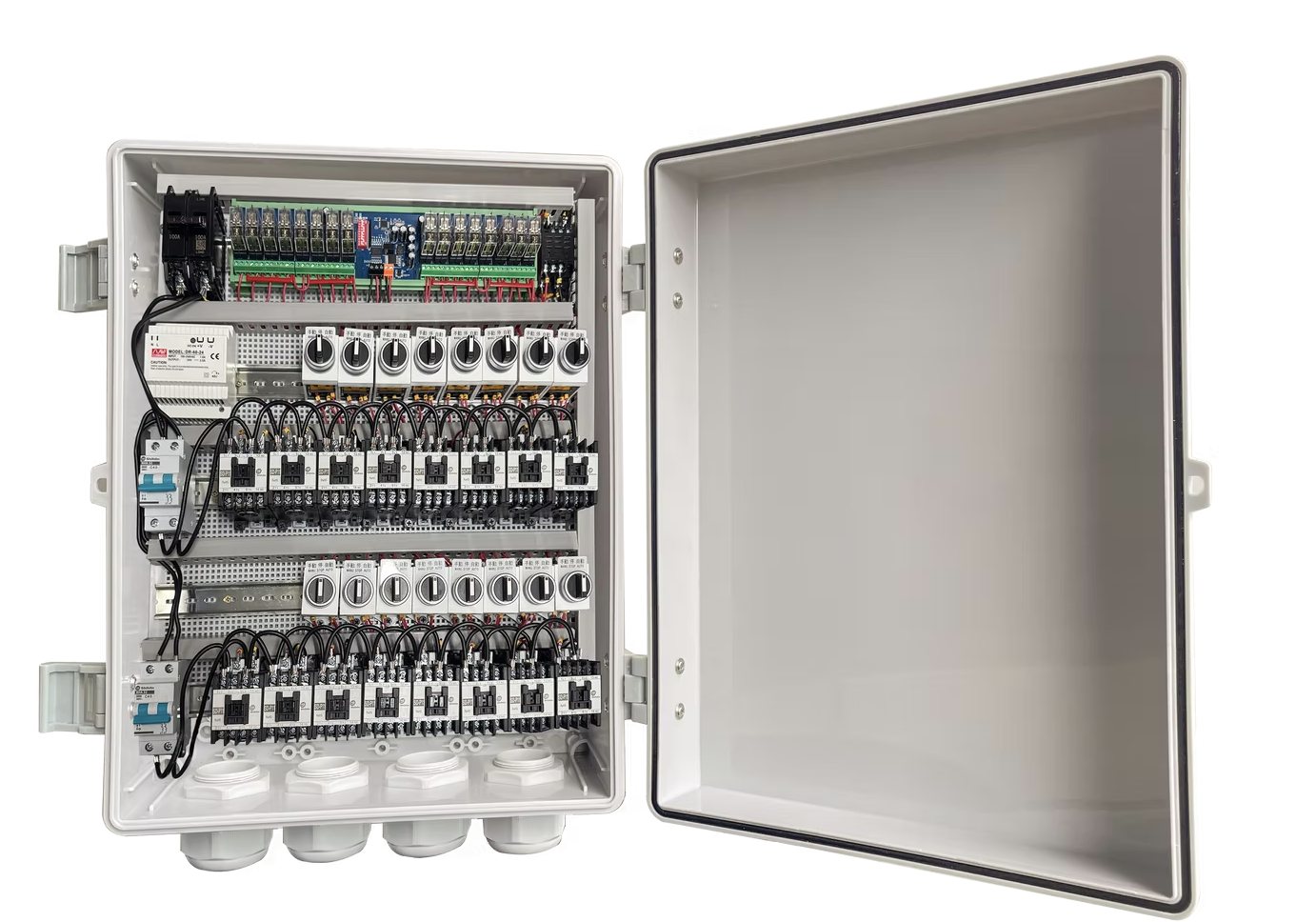

A04-Sixteen-way standard version Contact quantity:
16 Device voltage (output): AC110-230V
Single channel current limit: 5A
Overload protection: optional
Total load current limit: 50A
Input voltage: AC110-230V
4 Device voltage (output): AC110-230V
Single channel current limit: 10A
Overload protection: optional
Total load current limit: 50A
Input voltage: AC110-230V
A02-Four-way solenoid valve version DC24V Contact quantity:
4 Device voltage (output): DC24V
Single channel current limit: 1A
Overload protection: 1A (fuse) Total load current limit: 20A
Input voltage: AC110-230V
A03-Four-way solenoid valve version AC24V Contact quantity:
4 Device voltage (output): AC24V
Single channel current limit: 1A
Overload protection: 1A (fuse)
Total load current limit: 20A
Input voltage: AC110-230V
A04-Sixteen-way standard version Contact quantity:
16 Device voltage (output): AC110-230V
Single channel current limit: 5A
Overload protection: optional
Total load current limit: 50A
Input voltage: AC110-230V
