Smart sensing components
Smart sensing components include: C01 soil moisture sensing component, C02 soil three-in-one sensing component, C03 air four-in-one sensing component, C04 light radiation sensing component, C05 optical rainfall sensing component, C06 ultrasonic wind direction and speed sensing component, C07 carbon dioxide sensing component, C08 ammonia sensing component, weather station.
- Company NameKIAO FARMING CO., LTD.
C01 Soil moisture sensing component.
Sensing item: Soil moisture.
Range: 0~100% ±3%.
Size (length x width x height): 12.3x4.5x1.5 cm.
Protection level: IP68.
Material: (probe) stainless steel.

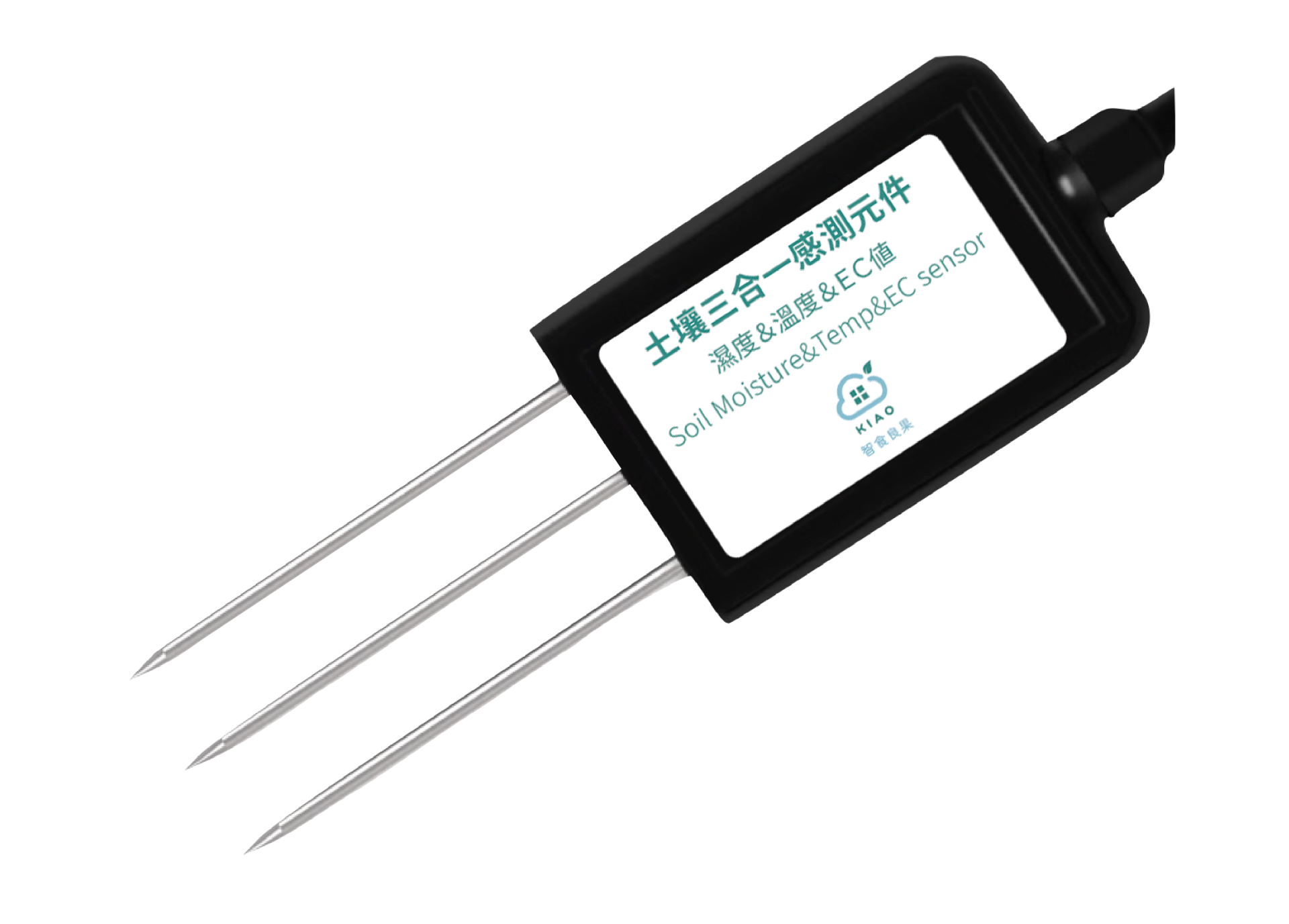

C02 Soil three-in-one sensing component.
Sensing items: Soil moisture (Range: 0~100% ±3%), Soil temperature (Range: -40%~80% ±0.5℃), Soil EC value (Range: 0~20,000µs/cm ±3%).
Size (length x width x height): 12.3x4.5x1.5 cm.
Protection level: IP68.
Material: (probe) stainless steel.

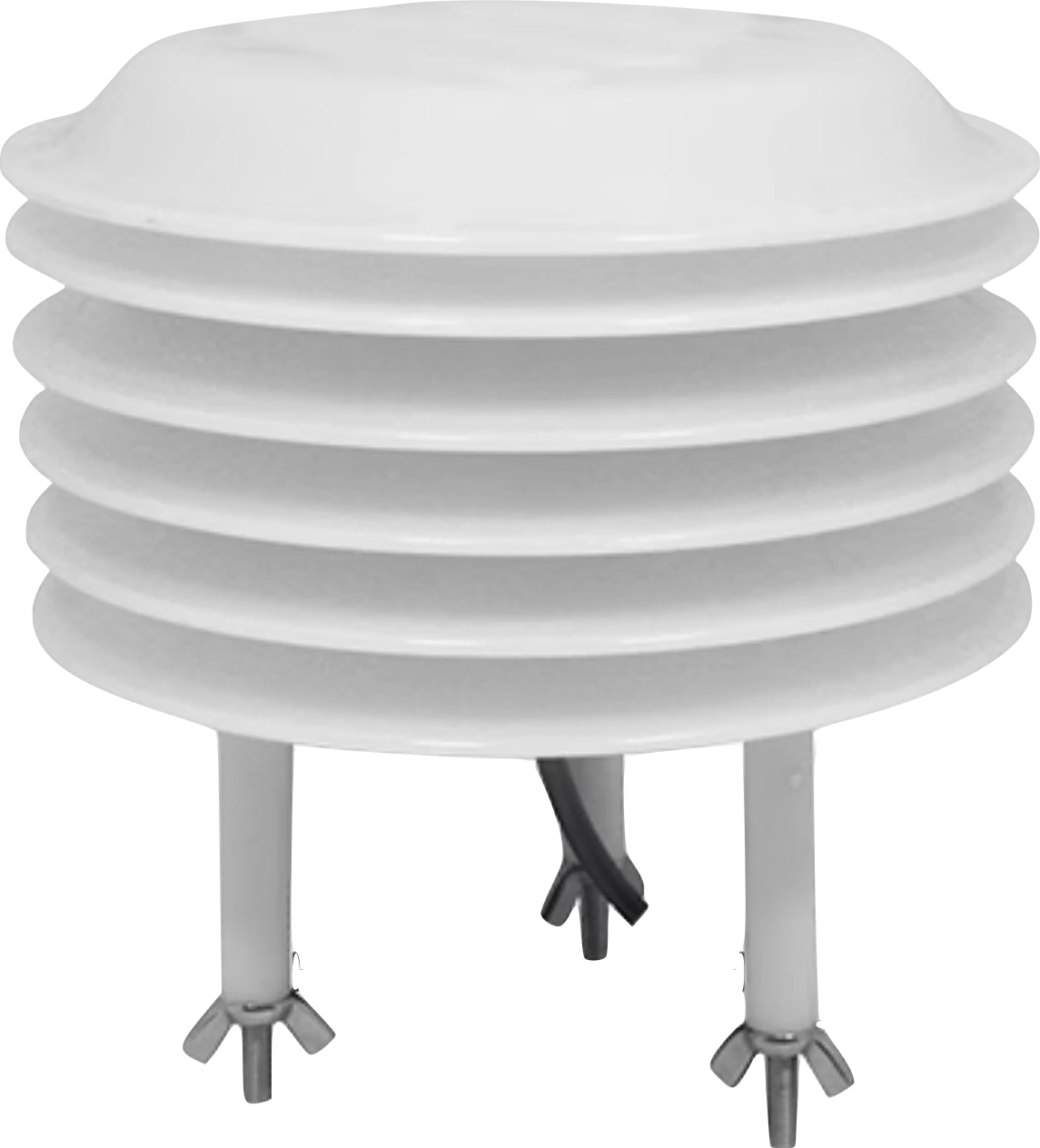

C03 Air four-in-one sensing component.
Sensing items: Air temperature (Range: -40~125℃ ±0.2℃), Air humidity (Range: 0~100% ±3%), Illumination (Range: 0~200,000Lux ±3%), Atmospheric pressure (Range: 0~120kpa ±0.15kpa).
Size (length x width x height): 12.5x14 cm.
Protection level: IP65.
Material: (shell) ABS.

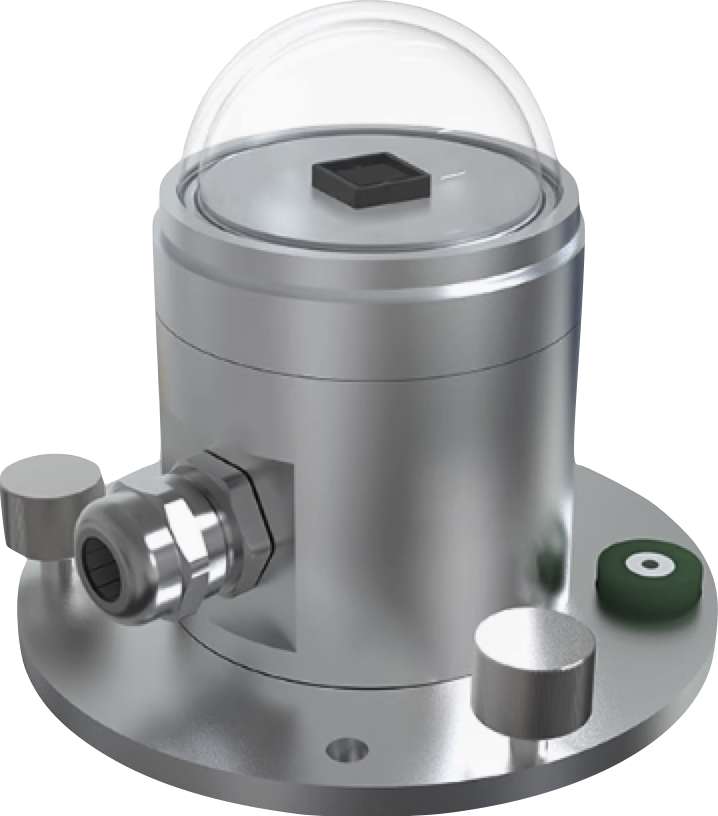

C04 Light radiation sensing component.
Sensing item: Solar radiation. Range: 0~2,000W/m² ±5%.
Size (length x width x height): 8x4.6x7 cm.
Protection level: IP67.
Material: (shell) aluminum alloy, (glass cover) quartz.
Note: 1. High transparency dust cover, light transmittance reaches 95%. 2. Comes with a level and adjustment knob for easy on-site adjustment.

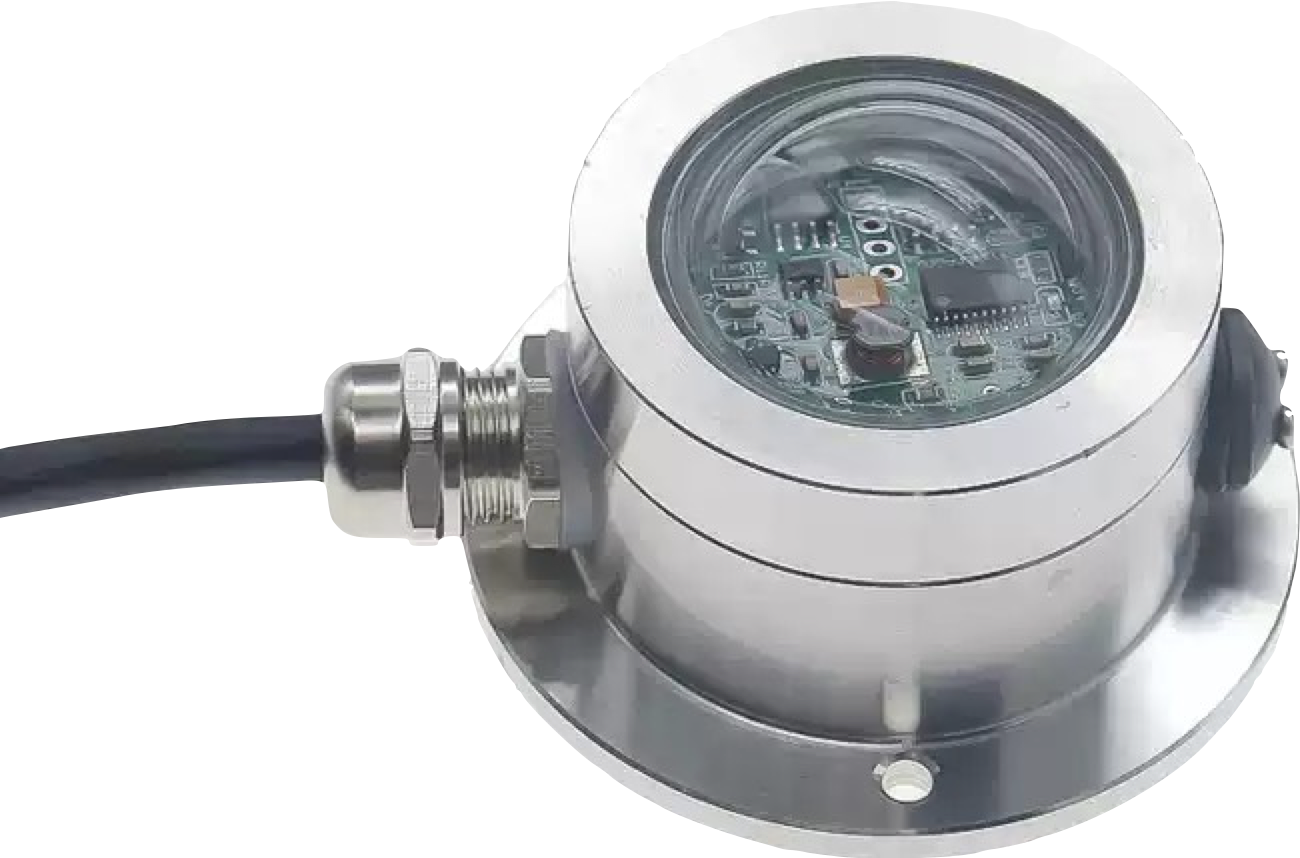

C05 Optical rainfall sensing component.
Sensing item: Rainfall. Range: 0~1,440mm/hr ±5%.
Size (length x width x height): 6.2x3.9 cm.
Protection level: IP65.
Material: (shell) stainless steel, (measuring lens) quartz glass.
Note: 1. Overpressure and overcurrent protection. 2. The quartz glass is an infrared detection lens, using infrared light as the measurement medium, unaffected by visible light to eliminate solar interference.

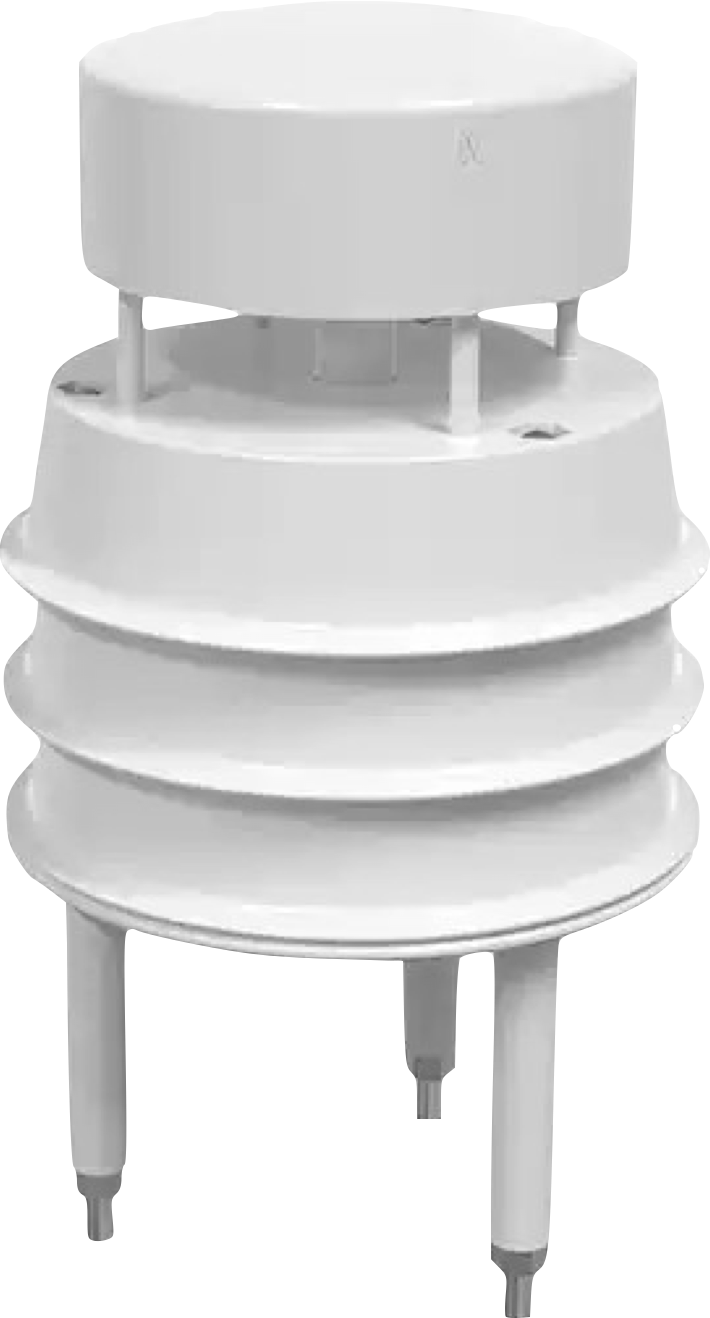

C06 Ultrasonic wind direction and wind speed sensing component.
Sensing items: Wind direction (Range: 0~359º ±3º), Wind speed (Range: 0~40m/s ±(0.2m/s±0.02V)). Size (length x width x height): 28.2x14.1 cm.
Protection level: IP66.
Material: (shell) ABS.
Note: Wind resistance strength 75m/s.
C07 Carbon dioxide sensing component. Sensing item: Carbon dioxide.
Range: 0~5,000ppm ±3%. Size (length x width x height): 12.5x14 cm.
Protection level: IP65.
Material: (shell) ABS.
C08 Ammonia sensing component. Sensing item: Ammonia. Range: 0~50ppm ±2%. Size (length x width x height): 12.5x14 cm.
Protection level: IP65.
Material: (shell) ABS.
Weather station.
Transmission method: WI-FI 2.4G.
Operating voltage: 110-230V.
Sensing items: Air temperature, air humidity, illumination, atmospheric pressure, soil moisture, soil temperature, soil EC value, solar radiation, rainfall, wind direction, wind speed.
Sensing ranges are as follows:
Air temperature: 0 ~ 100°C ± 0.2°C.
Air humidity: 0 ~ 100% ± 3%.
Illumination: 0 to 200,000 Lux ± 3% (illumination).
Atmospheric pressure: 0-120Kpa ±0.15Kpa.
Soil moisture: 0-100% ± 3%.
Soil temperature: 0~80°C ±0.5°C.
Soil EC value: 0~20,000 μs/cm ±3%.
Solar radiation: 0-2,000Ｗ/m² ± 5%.
Rainfall: 0~1,440 mm/hr ± 5%.
Wind direction: 0-359° ±3°.
Wind speed: 0-40m/s ±(0.2m/s±0.02V).
