Fat Filtrator
Effective removal of solids in fatty sludge from screw presses
- Company NameHAARSLEV INDUSTRIES SDN BHD

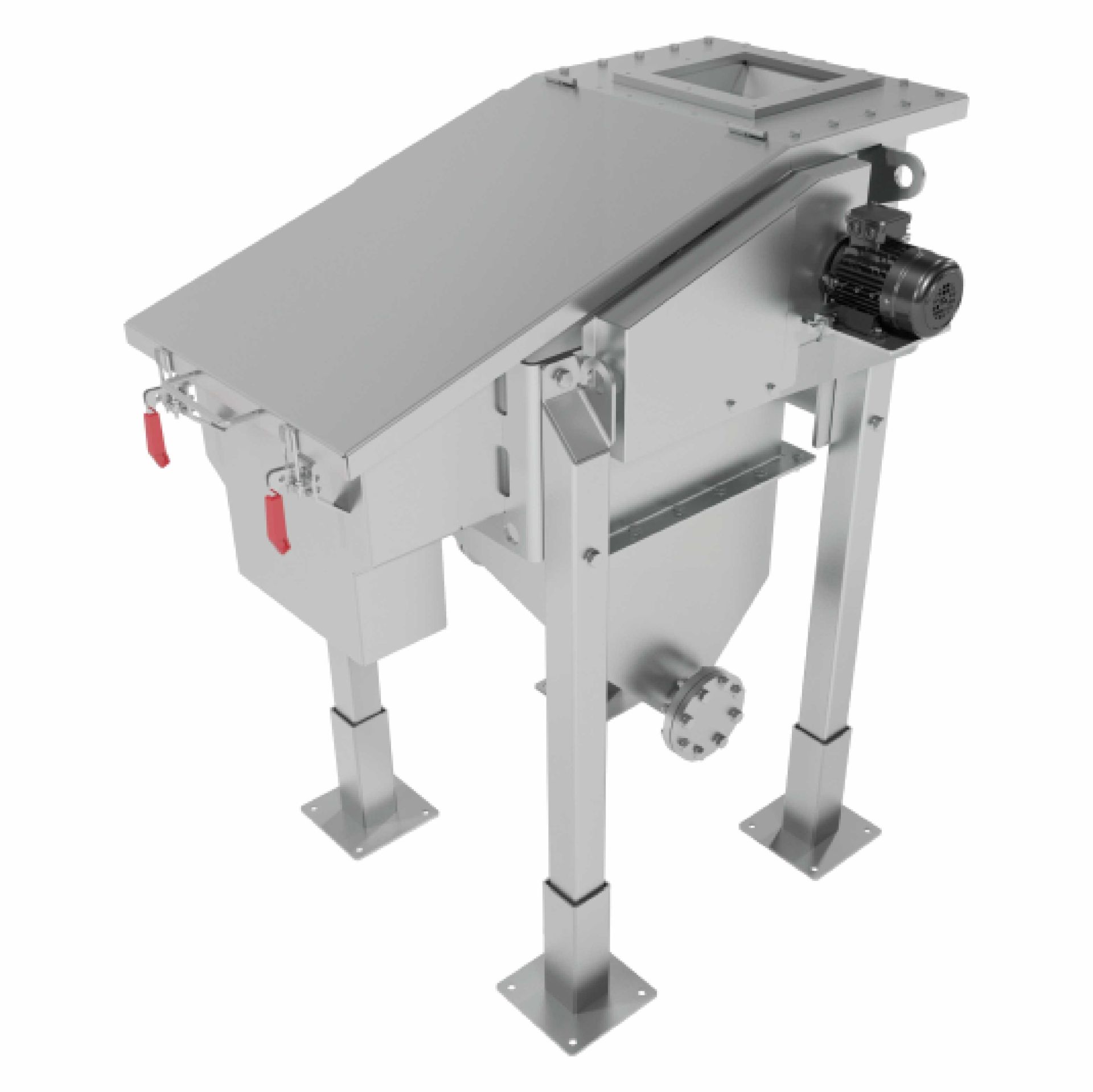

A compact Haarslev Fat Filtrator removes solids (fines) present in the fatty sludge from the screw presses in your operation, and is often installed upstream from a decanter centrifuge that separates the tallow still further.
The flow of fatty sludge passes through a vibrating screen with a mesh size of 0.7–1.0 mm. The fat passes through, and any solids remain on top. The combination of the angled position and the vibration of the screen transports the solids to the outlet.
You can use screen meshes with particular size holes to deal with fat flows with different specifications.
Applicable for
Rendering plants
Benefits
Reduces solids load (and resulting wear) on downstream decanter centrifuges
Removal of large lumps of solids makes material easier to pump
Screens easy to change and replace (no tools needed)
Easy to install even in small spaces
Easy inspection and cleaning
The flow of fatty sludge passes through a vibrating screen with a mesh size of 0.7–1.0 mm. The fat passes through, and any solids remain on top. The combination of the angled position and the vibration of the screen transports the solids to the outlet.
You can use screen meshes with particular size holes to deal with fat flows with different specifications.
Applicable for
Rendering plants
Benefits
Reduces solids load (and resulting wear) on downstream decanter centrifuges
Removal of large lumps of solids makes material easier to pump
Screens easy to change and replace (no tools needed)
Easy to install even in small spaces
Easy inspection and cleaning
